Xerox Phaser 6500 Service Manual

8-86 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Xerographics
SFP Laser Unit
PL 4.1.99 (Kit ROS Assy)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the Right Side Cover (page 8-17).
5. Remove the Left Side Cover (page 8-18).
6. Remove the Rear Tray Cover (page 8-19).
7. Remove the Rear Cover (page 8-20).
8. Raise the Transfer Belt and latch in the upright position.
9. Remove the IP Board Card Cage (page 8-140).
10. Remove the LVPS (page 8-124).
11. Remove the MCU Board (page 8-138).

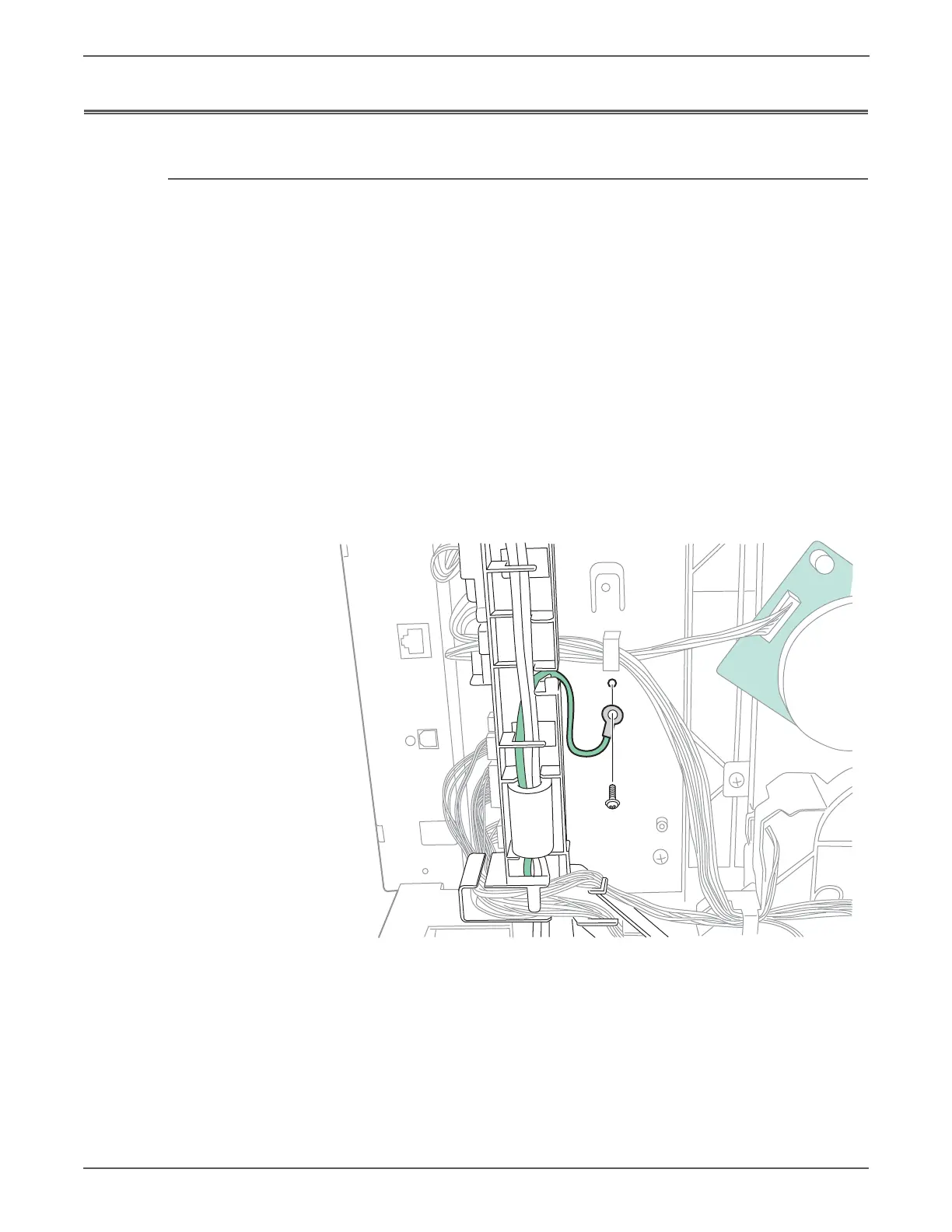

12. Remove the screw (silver, with washer, 6mm) that secures the ground harness
to the chassis.
s6500-266
