8-136 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP HVPS
PL4.1.19 (PWBA HVPS)

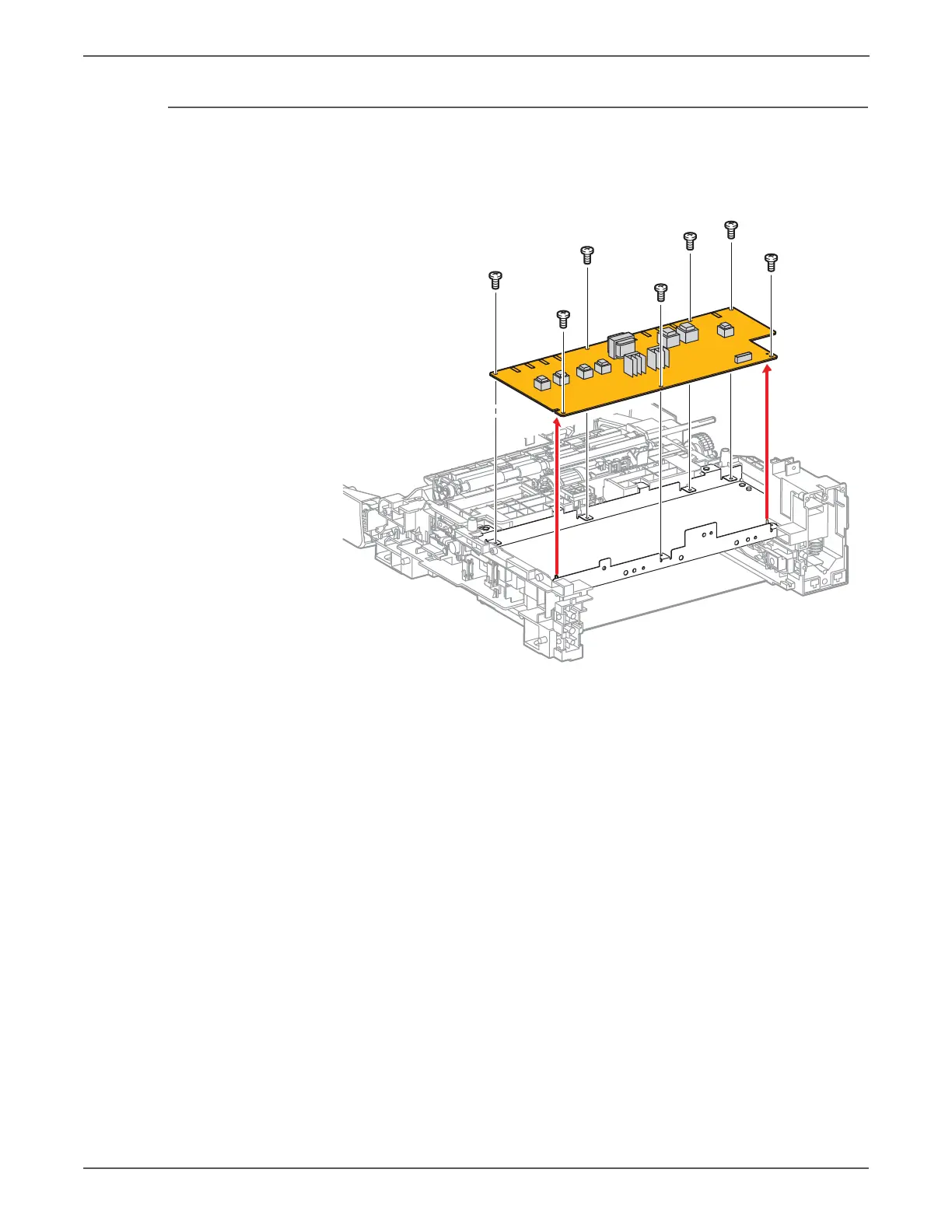

1. Remove the SFP Upper Frame Assembly (page 8-51).
2. Remove the 7 screws (silver, 6mm) that secure HVPS to the HVPS Frame.
s6500-323
