Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-49
Service Parts Disassembly

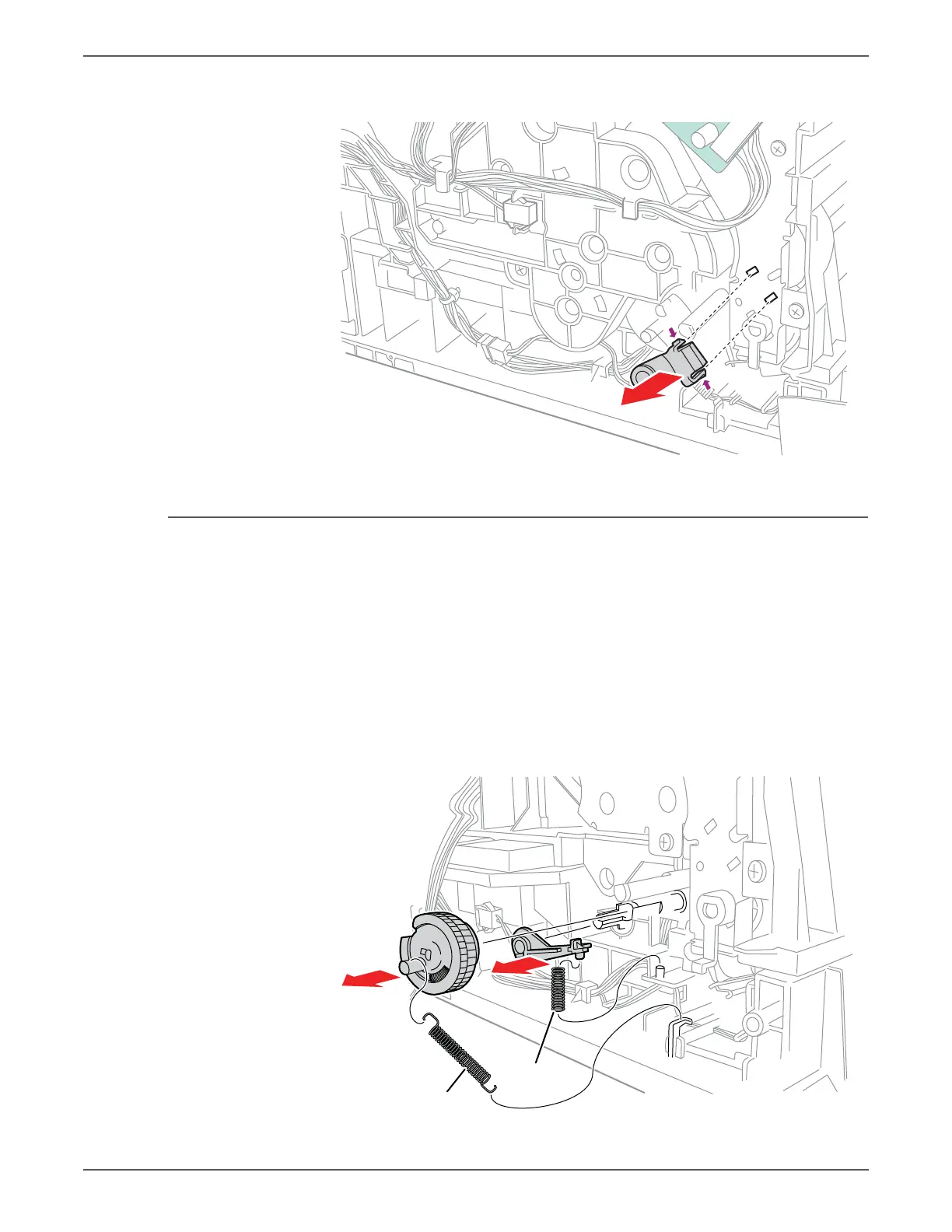

7. Squeeze the two hooks of the Registration Bearing to release them, and
remove the Registration Bearing from the shaft.
Feed Solenoid
PL3.1.99 (Kit Solenoid Feed)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).
4. Remove the Drive Clutch and Bearing Kit (page 8-48).
5. Remove the Feed Drive Assembly (page 8-117).
6. Release the Feed Gear Return Spring from the chassis. Leave the spring
connected to the arm on the Feed Gear.
7. Push down on the Feed Lever and release the Feed Gear retainer hook to slide
the Feed Gear off the shaft.
s6500-227
s6500-228
Feed Gear Return Spring
Lever Spring
