Xerox Phaser 6500 Service Manual

8-50 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

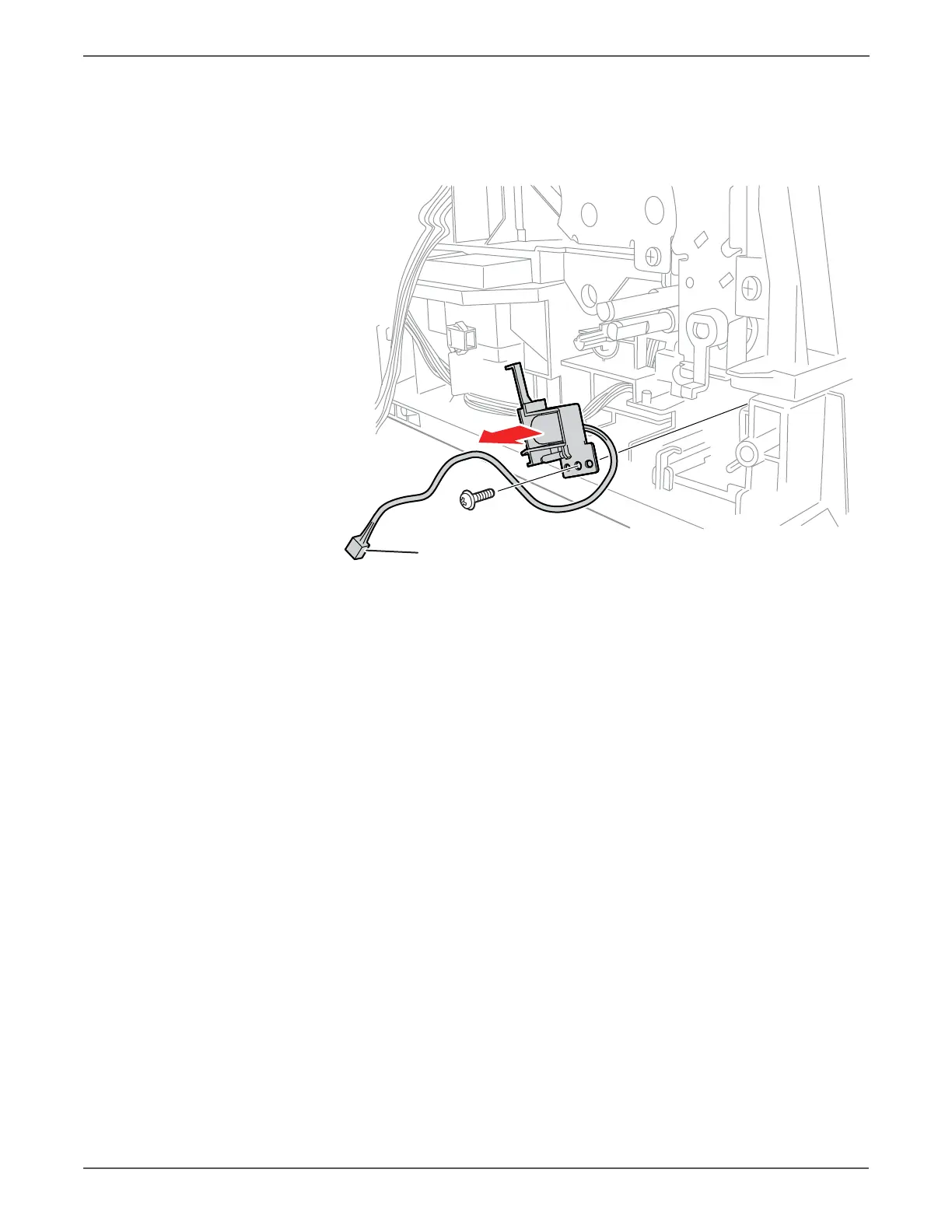

8. Release the Feed Solenoid harness from the cable restraints on the frame.
9. Disconnect P/J231. Allow the relay connector to remain with the printer side
of the harness.
10. Remove the screw (silver, tap, 8mm) that secures the Feed Solenoid to the
chassis to remove the solenoid.
s6500-229
P/J231
