Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-7
Service Parts Disassembly
Imaging Unit
PL4.1.21 (Imaging Unit)
Caution
Cover the Imaging Unit to avoid light exposure.
Note
The illustrations for this procedure show the SFP, but removing the MFP
Imaging Unit is performed in exactly the same manner.
1. Remove Tray 1.
2. Open the Front Cover.
3. Lower the Transfer Belt.
4. Place a sheet of paper over the Transfer Belt to protect the belt.

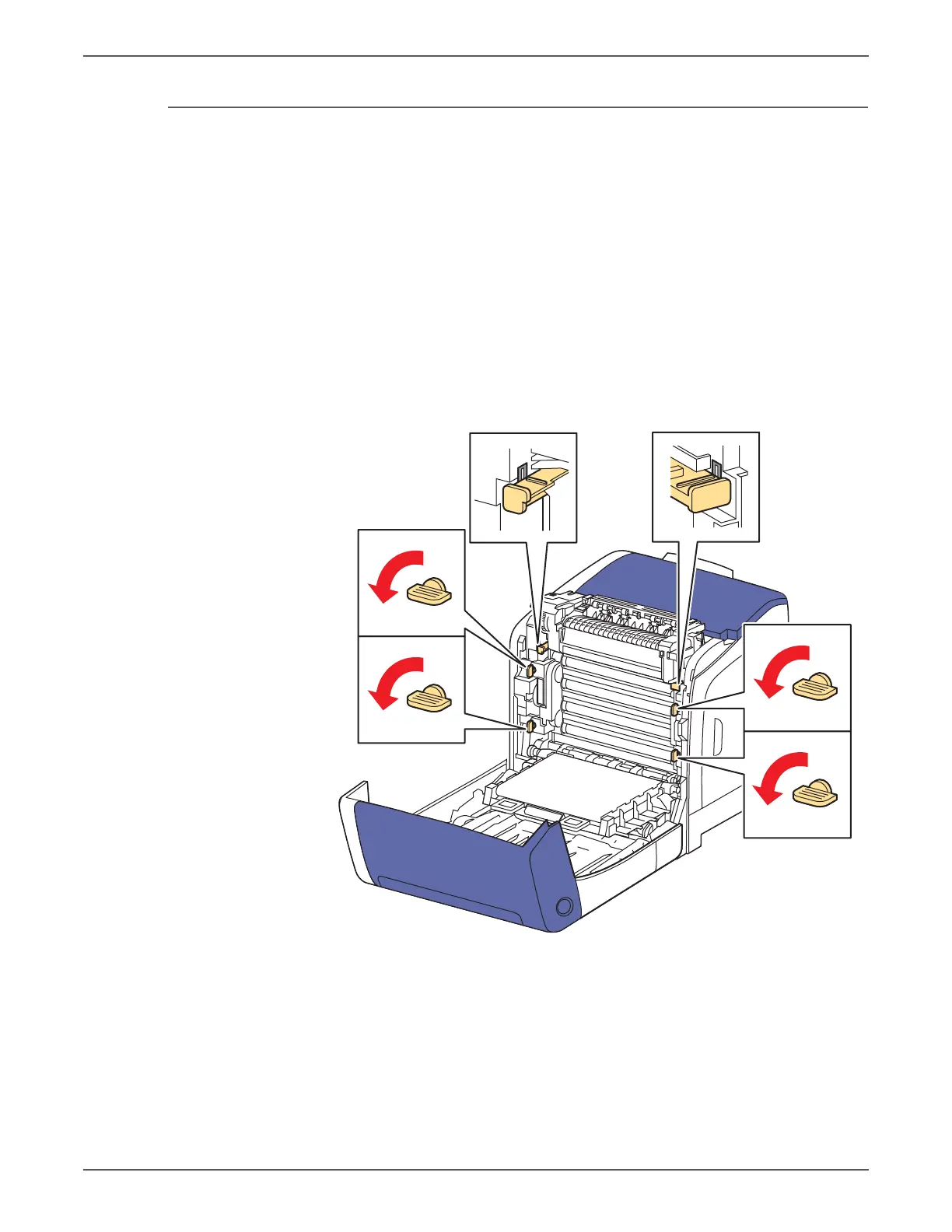

5. Rotate the four securing locks 90° counter-clockwise.
s6500-176

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
