8-8 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

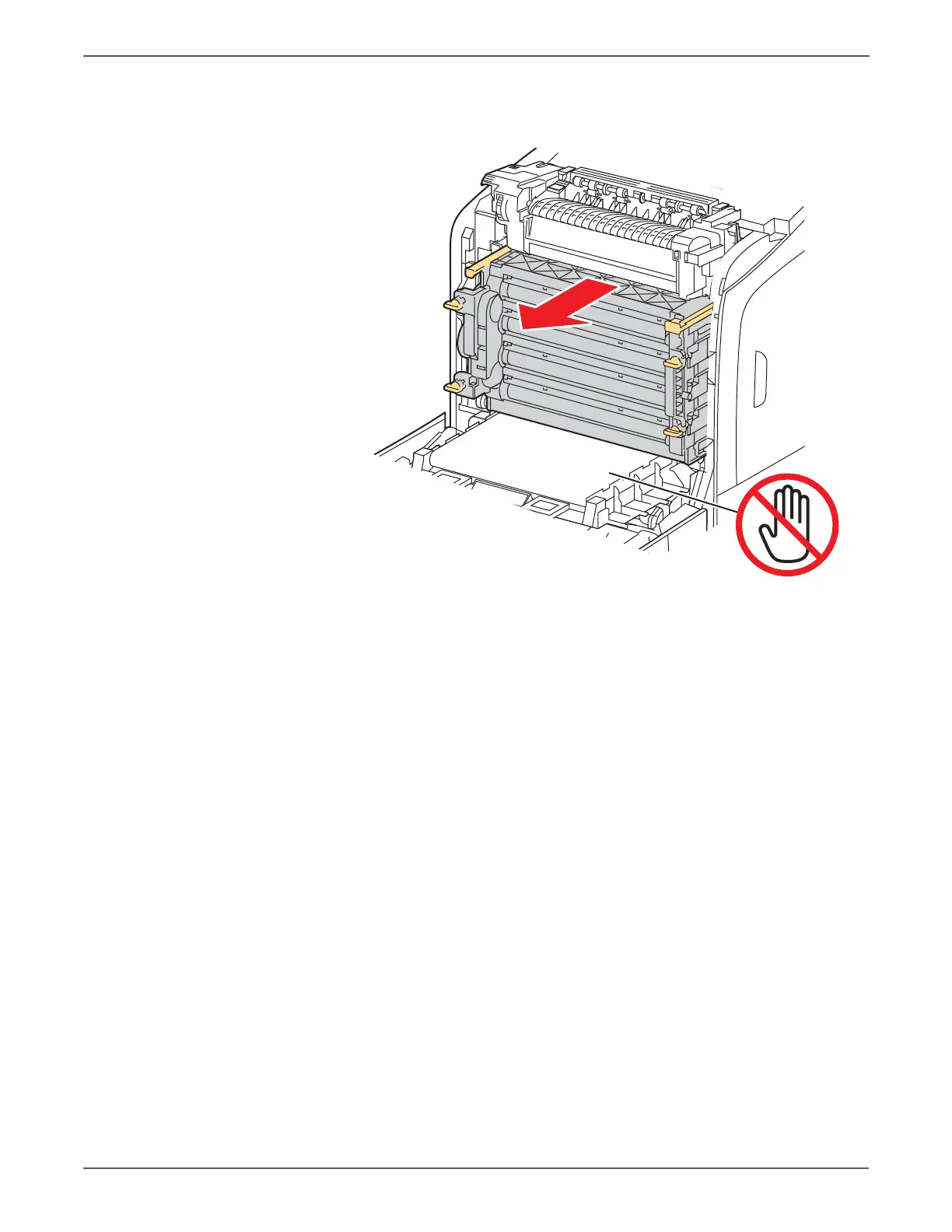

6. Grasp the left and right handles and pull the Imaging Unit straight forward

until it is clear, then lift as shown. Take care to not touch the drums or scratch

the Transfer Belt.

s6500-177
