Xerox Phaser 6500 Service Manual

8-142 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP IP Board Shield
MFP PL 8.1.7 (Shield Assy ESS AIO)
1. Perform the service preparation steps on page 8-3.
2. Open the MFP Front Cover.
3. Remove the MFP Left Side Cover (page 8-37).
4. Remove the MFP Outer Pole Cover (page 8-39).

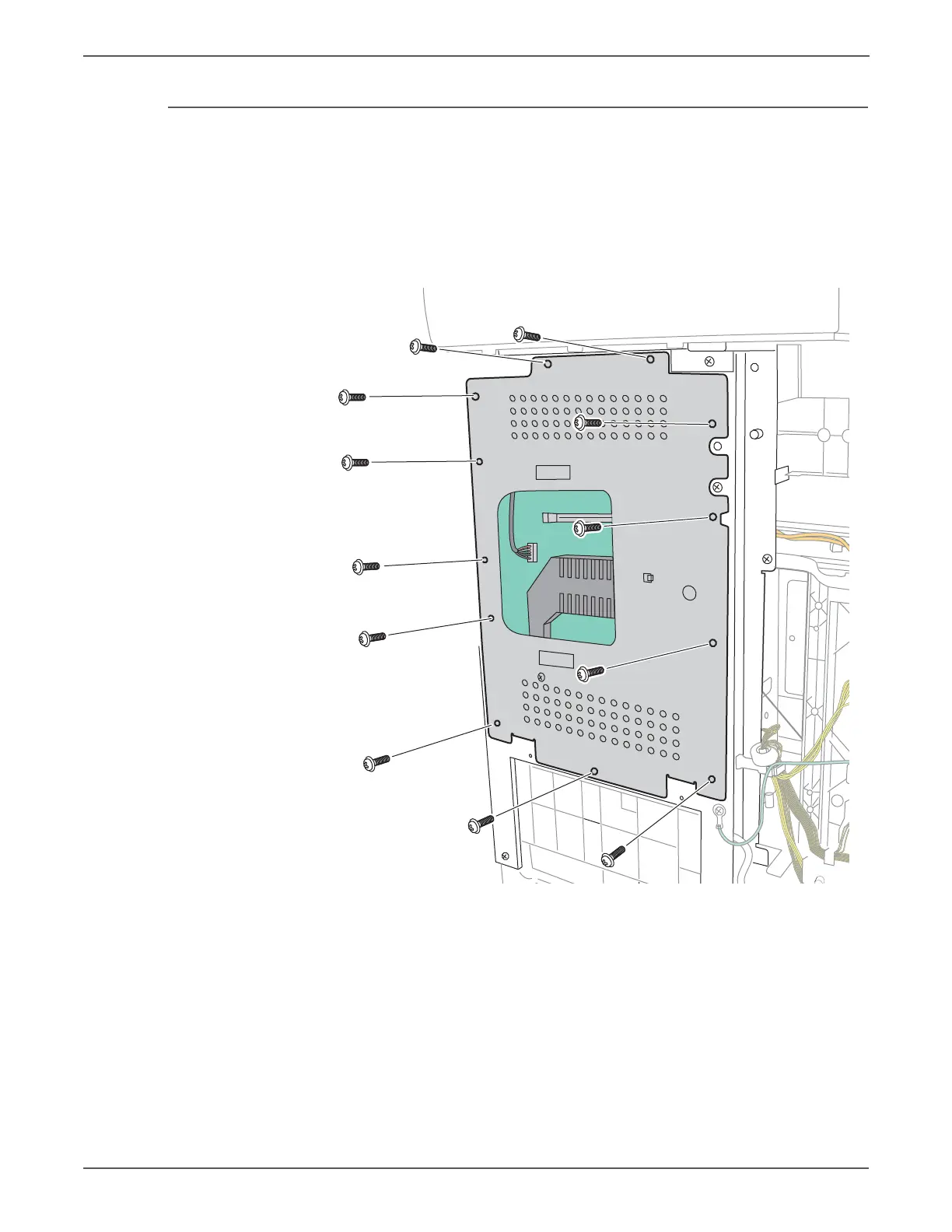

5. Remove the 12 screws that secure the IP Board Shield to the chassis.
6. Lift the shield to release the 2 tabs at the bottom and remove the shield.
s6500-330s6500-330
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
