Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-5
Theory of Operation
Exposure
Four laser diodes (one for each color) in the Laser Unit emit laser beams. The
beams are directed by mirrors to the rotating polygon mirror attached to the
scanner motor. As the polygon mirror rotates, the beams are directed through a
series of lenses and mirrors to each of the drums, which are scanned by the beams
from end to end in the axial direction.
The negatively charged drum surface is scanned by the laser beams to form an
invisible electrostatic latent image on the drum surface. The process is performed
in parallel for all colors. The area on the drum where the laser beam strikes
becomes conductive. The negative charge on the surface flows to the more
positive drum, lowering the voltage potential.

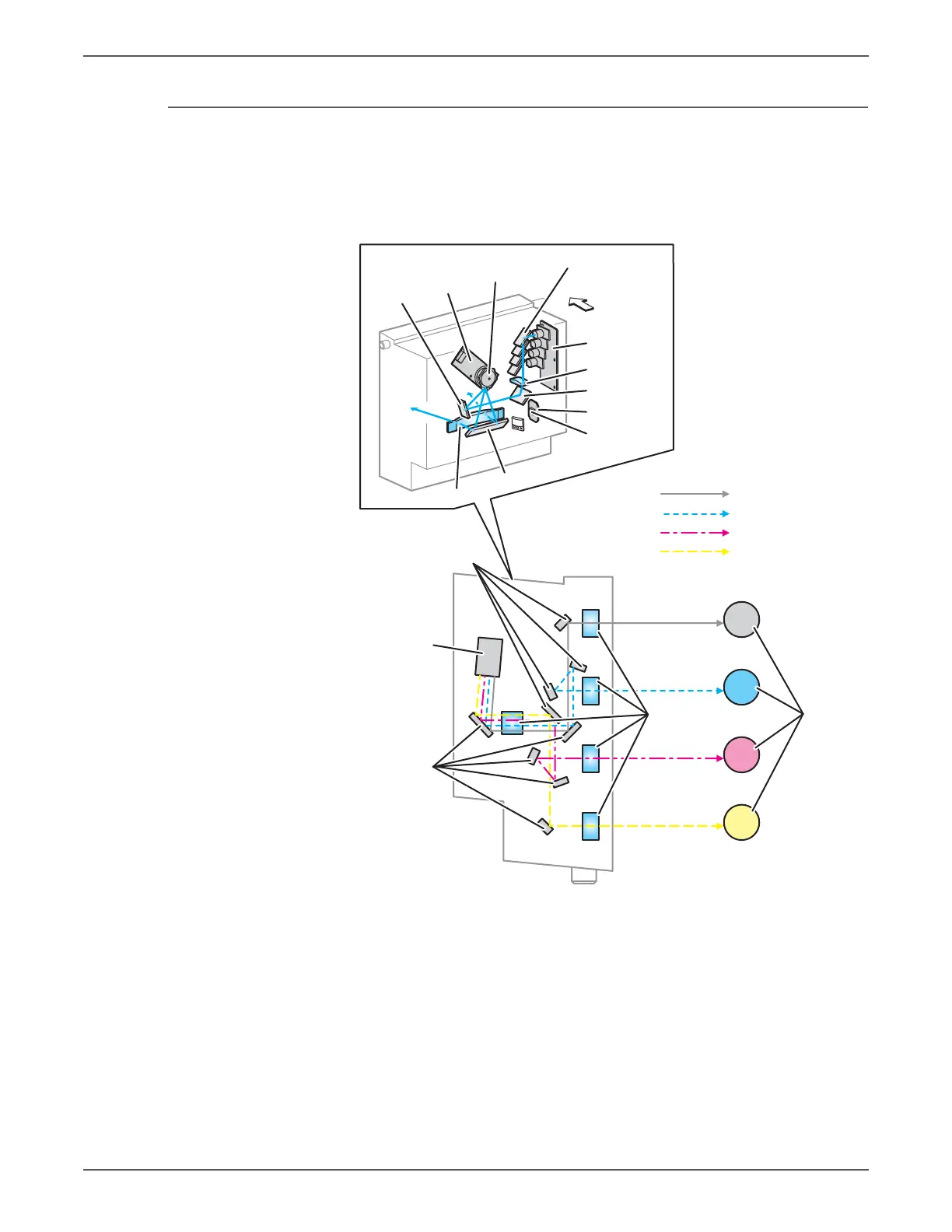

s6500-021
: Laser beams (Y)
: Laser beams (M)
: Laser beams (C)
: Laser beams (K)
Front
Drums
Polygon Mirror
Mirrors
Mirrors
Lenses
Laser Diode
Board
Polygon Mirror
Scanner
SOS Board
Lens
Lens
Mirrors
Mirror
Mirror
Mirror
SOS Sensor

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
