Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-45
General Troubleshooting
Tray 2 Feed Solenoid Test
The Tray 2 Feed Solenoid engages the pick roller.
Note
Do not remove the Optional Feeder from the printer and close the Interlock
Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 2 from the Optional Feeder.
3. Remove the Rear Cover from the Optional Feeder ().
4. Remove the Left Side Cover from the Optional Feeder ().
5. Run the Main Motor test: Engine Diag > Motor Test > Tray 2 Feed Solenoid
Auto.

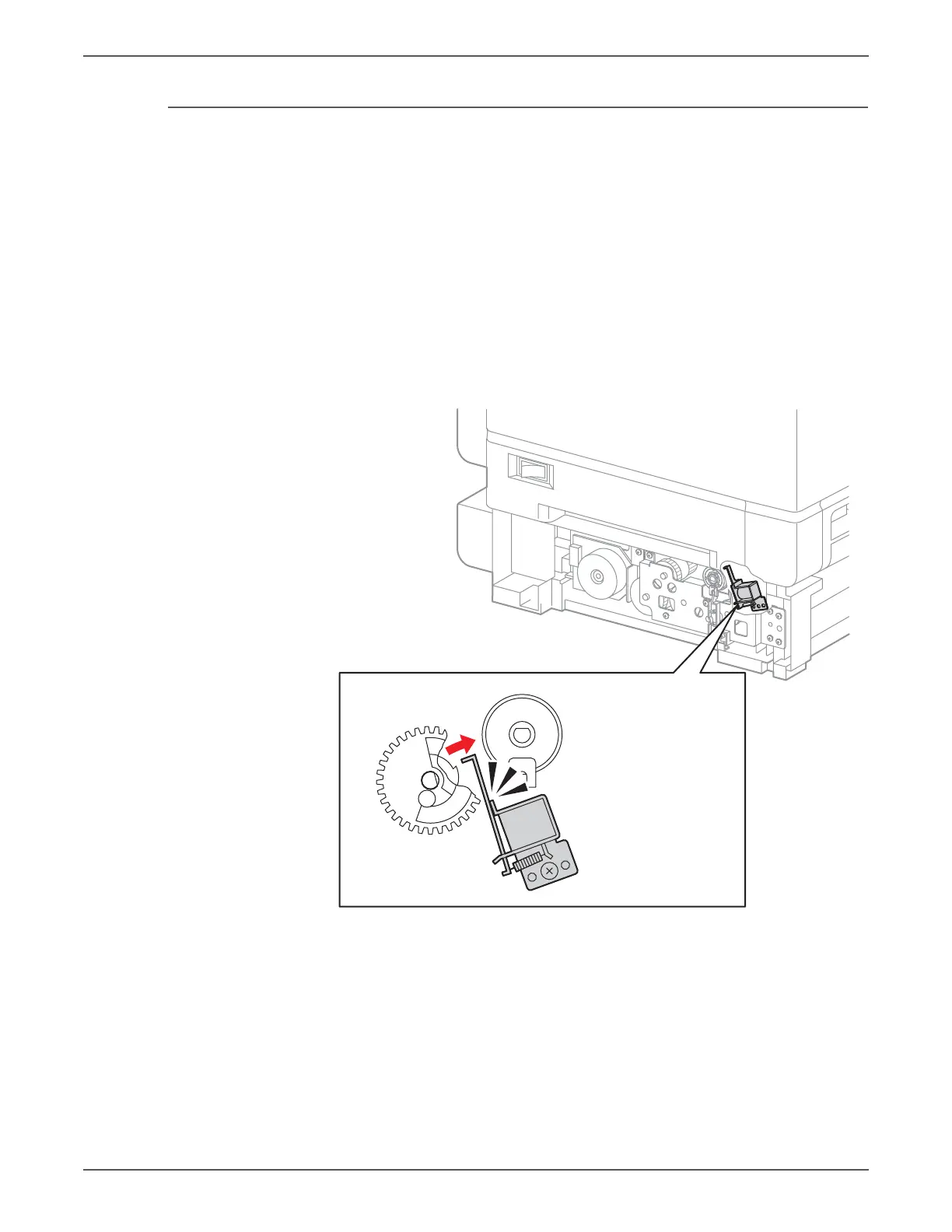

6. Check Feed Solenoid movement.
Note
Press Cancel to stop the test.
s6500-132
