Xerox Phaser 6500 Service Manual

5-44 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

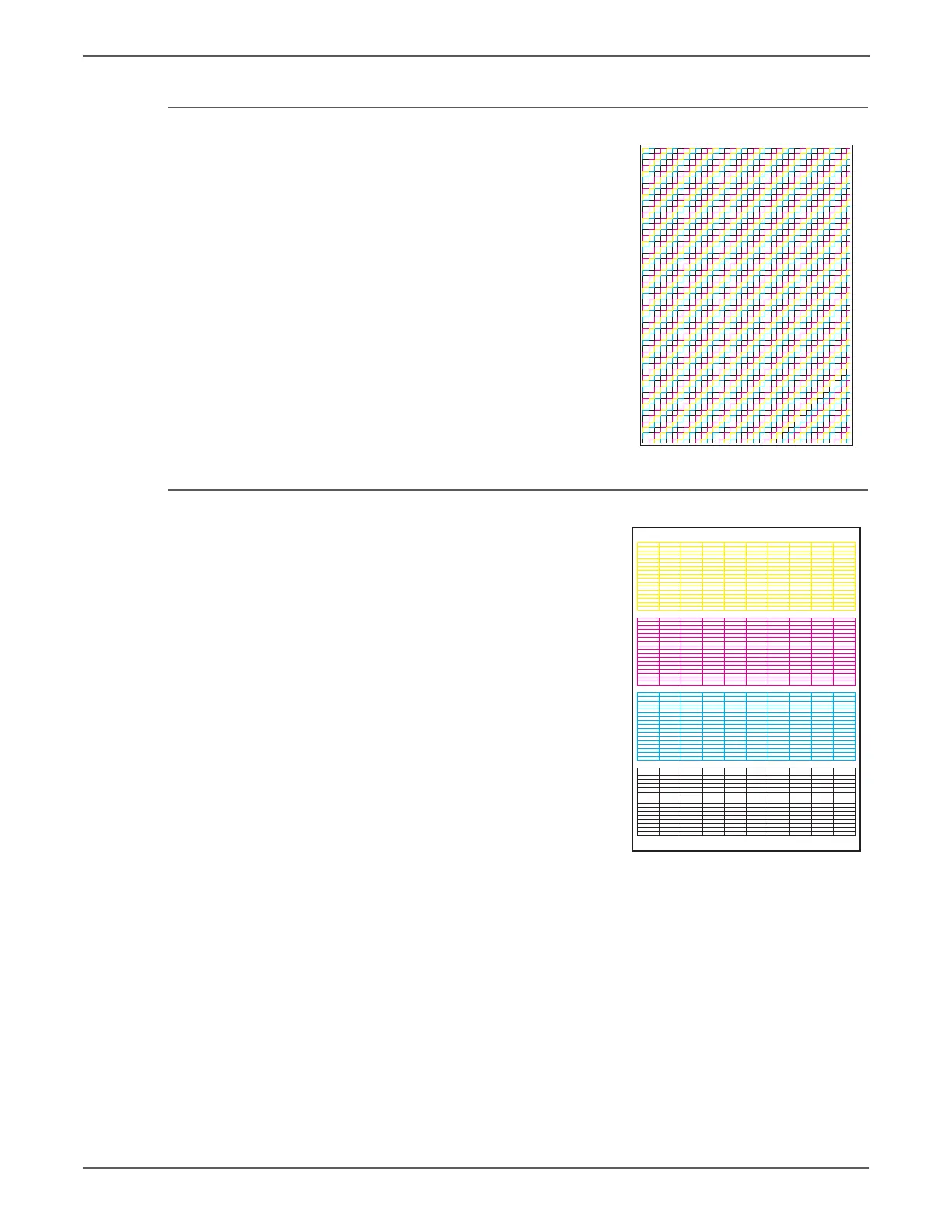

Print-Quality Troubleshooting
Pattern IOT Test Print
This Engine test print is used to identify
problems with printer function or the
Image Processor Board. The colors should
be aligned vertically and horizontally.
Compare the print with this example to
determine the problem.
• Fail: Check the printer controller or the
MCU Board.
• Pass: Check the Image Processor
Board.
Grid 2 ESS Test Print
This test print provides a grid pattern
sample. This page is used to identify
problems with printer function. Compare
the print with this example to determine
the problem.
• Fail: Check the printer function and the
Image Processor Board.
• Pass: Check the network connection,
cable, PC...etc.
s6500-141
s6500-142
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
