Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-177
Service Parts Disassembly
Option Feed Motor Kit

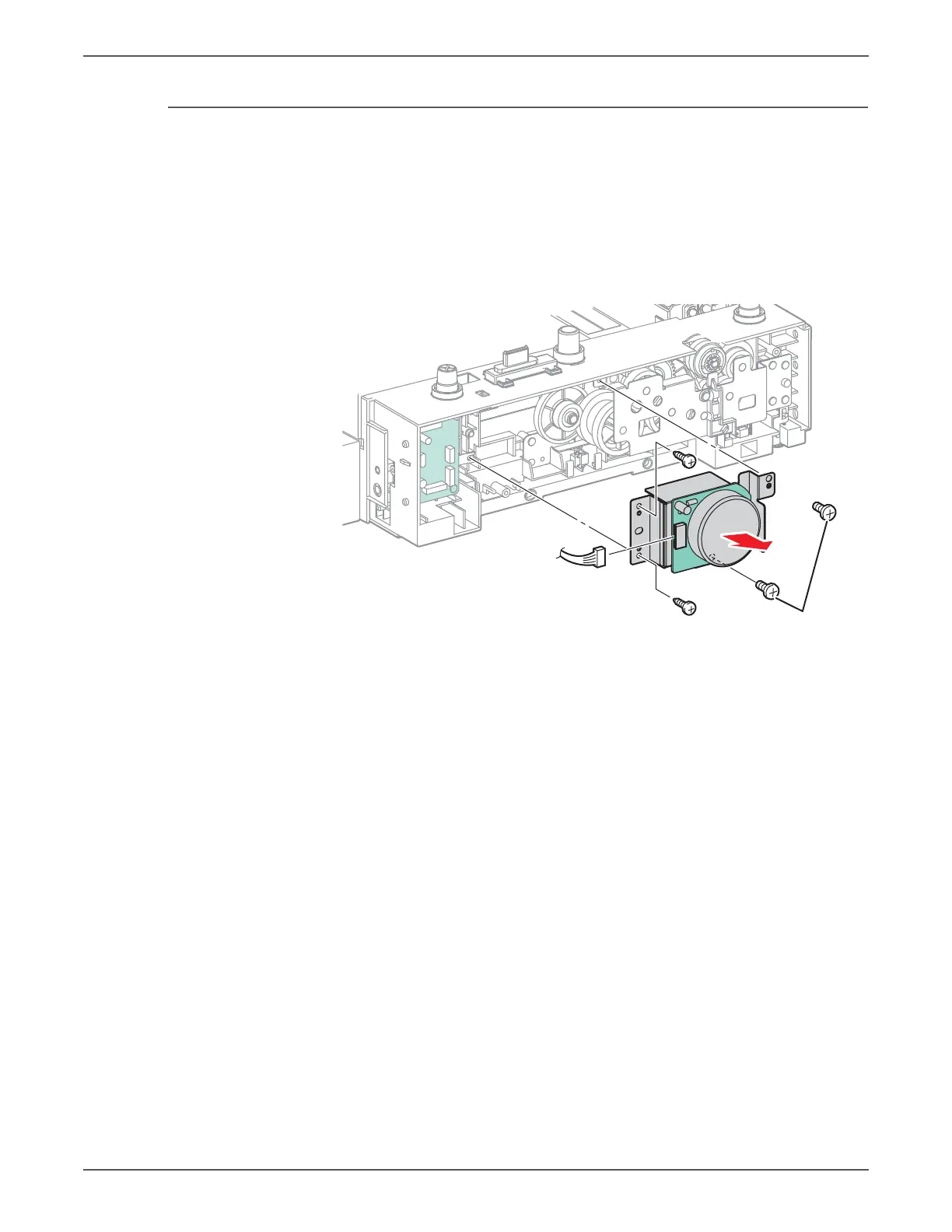

PL12.2.98 (Kit Assy Motor Opt)
1. Remove the Optional Feeder (page 8-167).
2. Remove the Front Cover (page 8-168).
3. Remove the Left Side Cover (page 8-169).
4. Disconnect CN1 from the Feed Motor.
5. Remove two (silver, metal, 6mm) and two (silver, plastic, 8mm) screws that
secure the Feed Motor to the feeder.
s6500-360
Silver, M4, 6mm
