Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-95
Service Parts Disassembly
Left Imaging Unit Restraint Block
PL 4.1.98 (Kit Block PHD Left)
1. Perform the service preparation steps on page 8-3.
2. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).
3. Remove the Main Drive Assembly (page 8-114).

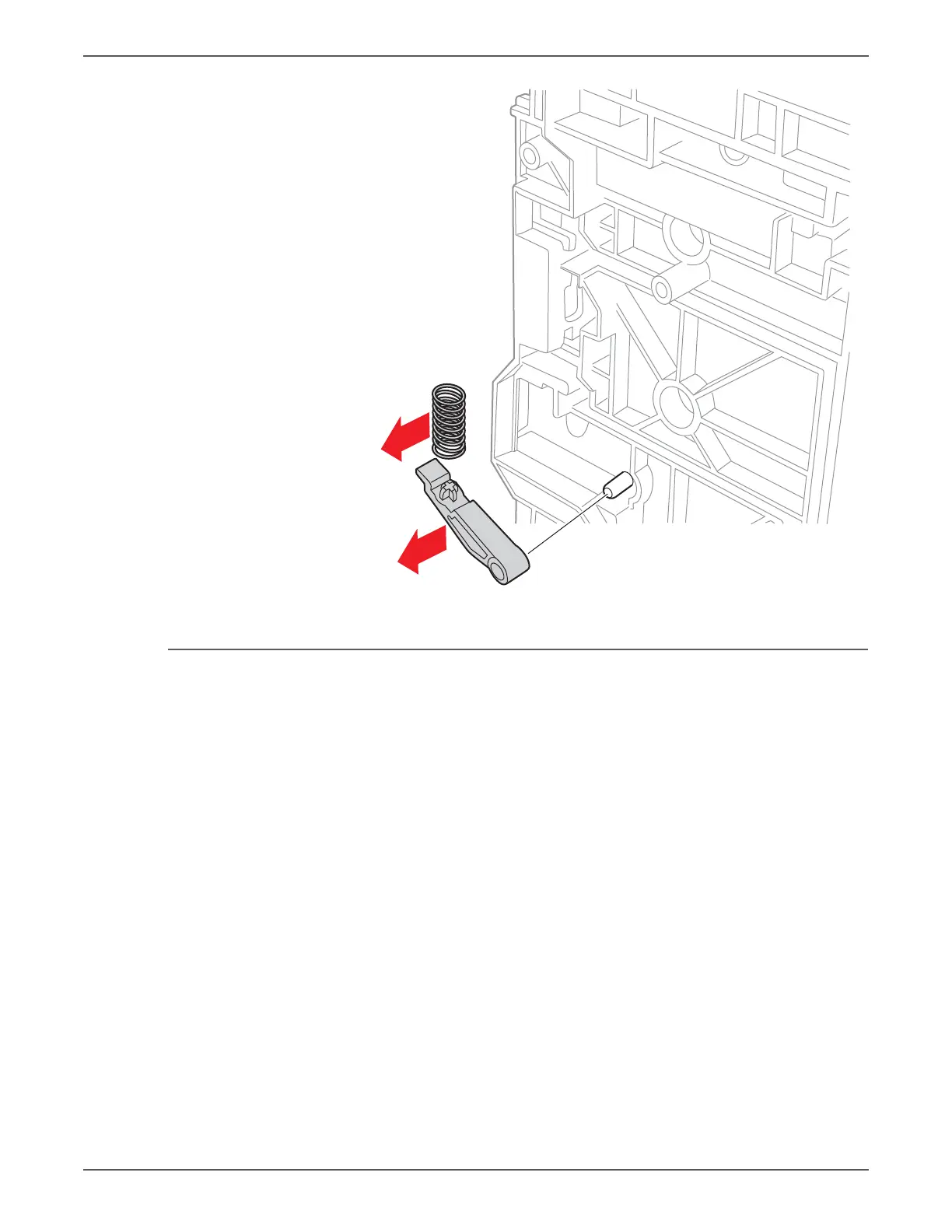

4. Use a miniature screwdriver to release the hook on the Imaging Unit Restraint
Block. These are stiff and require a stronger force to release
s6500-276

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
