8-138 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP MCU Board
SFP PL8.2.13 (PWBA MCU)
1. Use the Service Diagnostics routine “Save NVM to ESS” on page 4-15 to
transfer the contents of the MCU NVRAM to the IP Board.
2. Exit Service Diagnostics and turn Off the printer.
3. Disconnect the Power Cord from the wall outlet.
4. Remove the Top Cover (page 8-15).
5. Remove the Right Side Cover (page 8-17).
6. Remove the Left Side Cover (page 8-18).
7. Remove the Rear Tray Cover (page 8-19).
8. Remove the Rear Cover (page 8-20).
9. Remove the IP Board Cage (page 8-140).

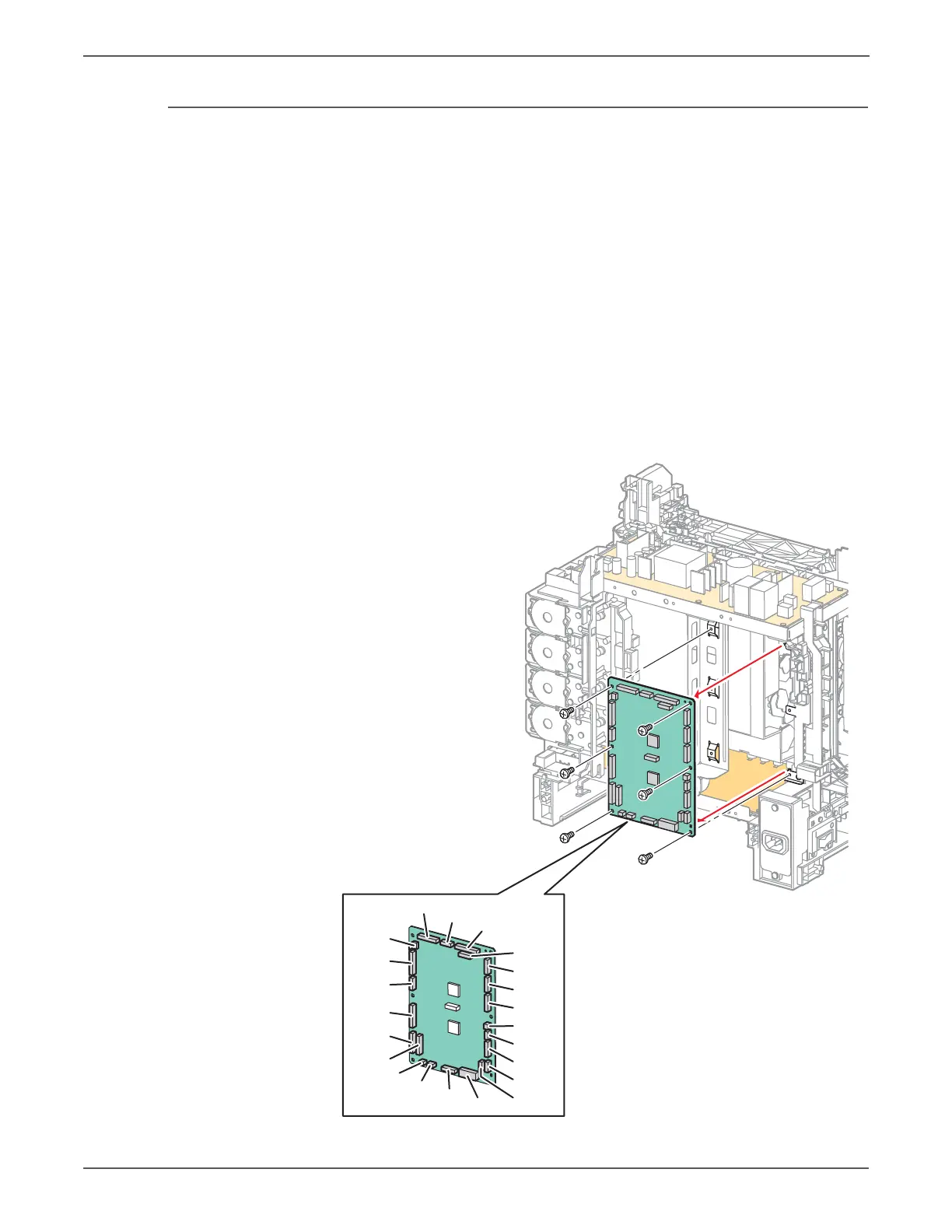

10. Unplug all connectors from the MCU Board.
11. Remove six screws (silver, 6mm) that secure the MCU Board to the chassis to
remove the board.
s6500-325
P/J11
P/J42
P/J22
P/J21
P/J24
P/J26
P/J15
P/J14
P/J17
P/J31
P/J19
P/J18
P/J29
P/J30
P/J16
P/J27
P/J40
P/J41
P/J10
P/J23
P/J28
P/J20
