Xerox Phaser 6500 Service Manual

5-50 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Print-Quality Troubleshooting

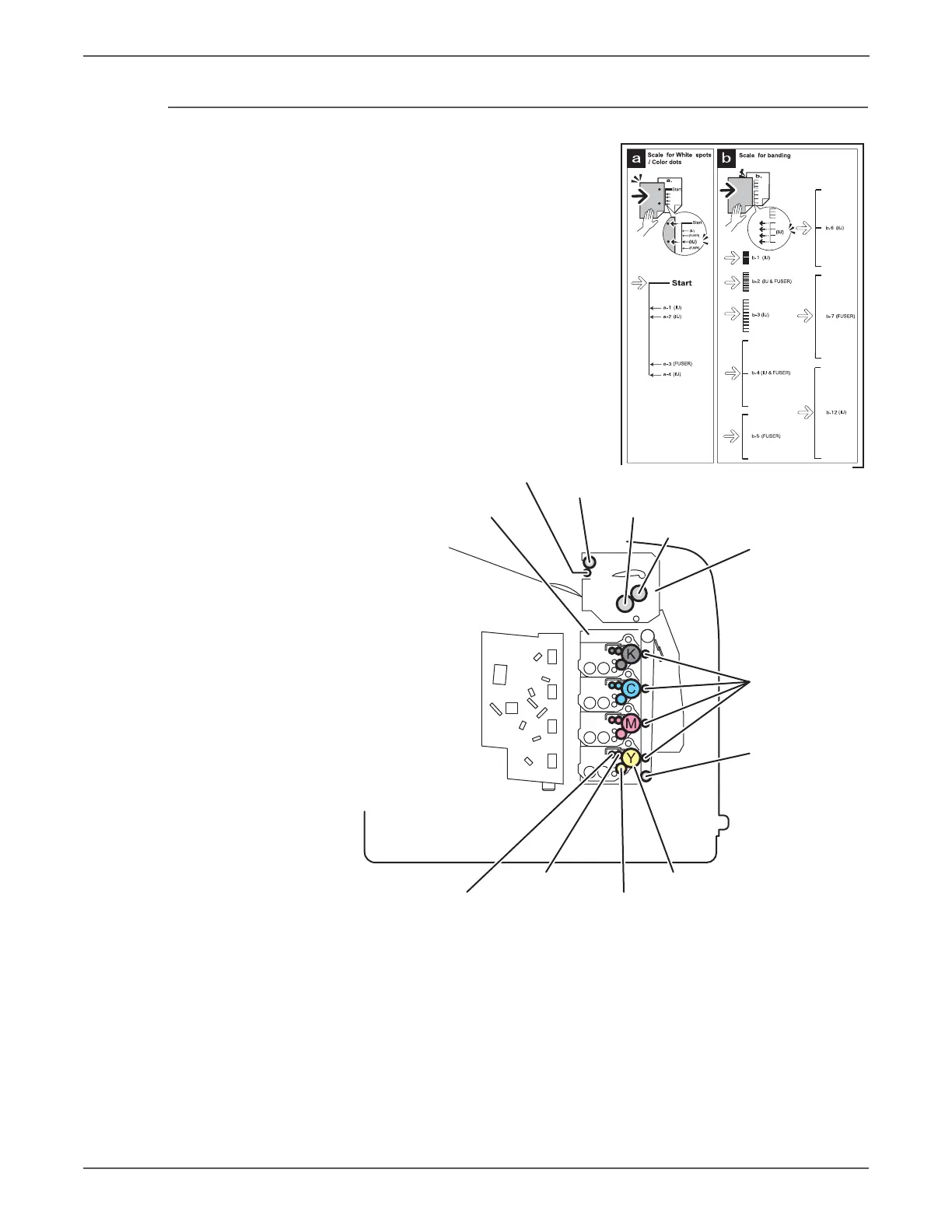

Pitch Chart Test Print
Horizontal lines and/or spots that occur
periodically are usually caused by one of
the printer’s many rollers. However, the
interval does not necessarily match the
circumference of the roller. Compare the
print defect intervals on the test print with
the gauges on the Pitch Chart that can be
printed from the Printer Diagnostics in
Service Mode. The problem may be solved
easily by the check.
To print the Pitch Chart, print the
Contamination Check test prints: Test
Print > Contamination Check.
s6500-155
s6500-156
Exit Roller
Heat Roller
Exit Pinch Roller
Pressure Roller
Bias Transfer
Rollers
Imaging Unit
Drive Roller
Fuser
Drum
BCR Cleaner Roller Magnet Roller
BCR
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
