Xerox Phaser 6500 Service Manual

4-20 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Print Engine Test Procedures
The print engine diagnostic test procedures are divided into three major groups:
Sensor Tests, Motor Tests, ana NVM Settings.
Sensor Tests

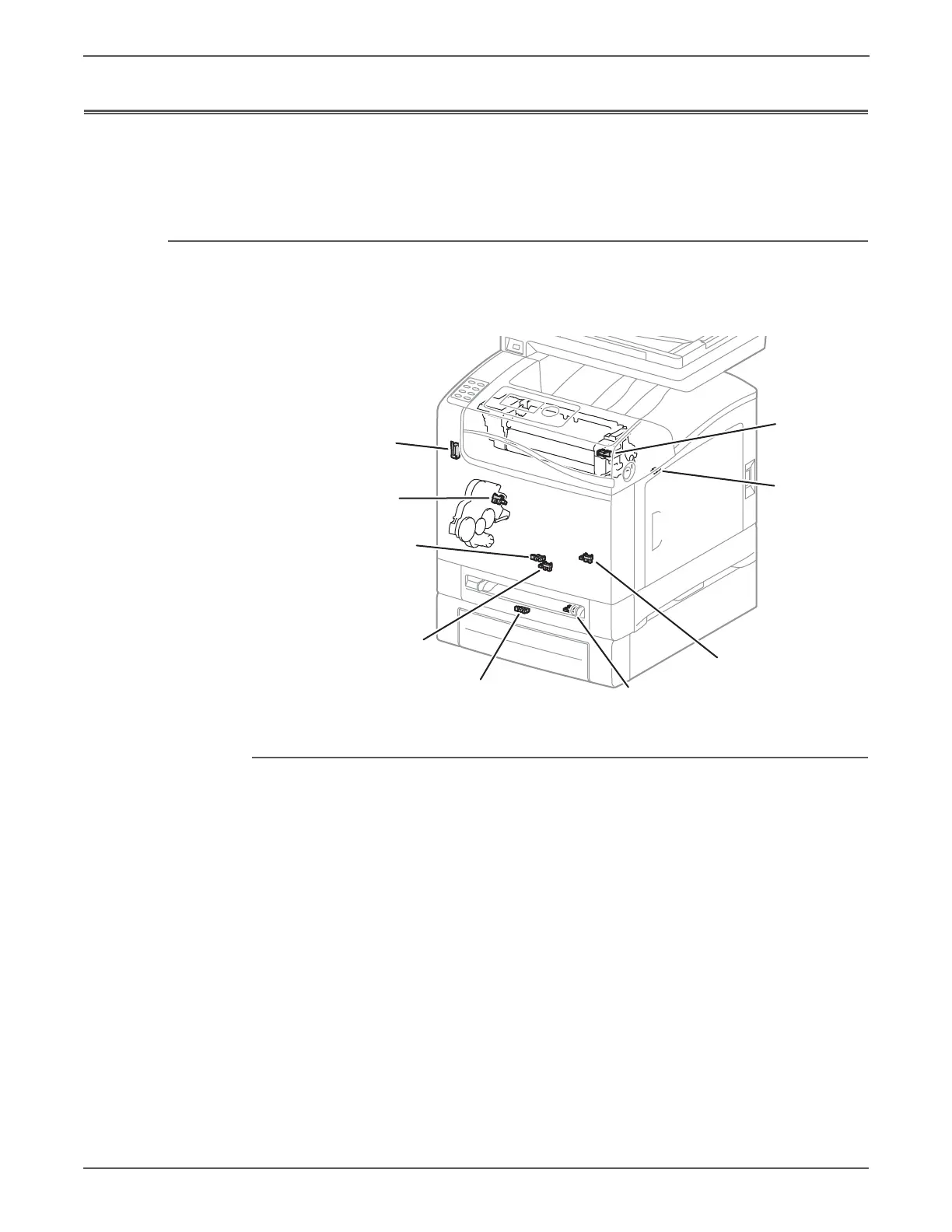

The following procedures test each print engine sensor using Service Diagnostics.
This illustration depicts the MFP; the sensors in the SFP are the same and in the
same locations.
Manual Feed Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Manual Feed Sensor test: Engine Diag > Sensor Test > Manual Feed
Sensor.
3. Slide a sheet of paper in and out of the Manual Feed slot.
s6500-105
Tray No Paper Sensor
Registration
Sensor
Interlock
Switch
Right Side
Door Switch
Exit Sensor
Paper Path Sensor
Manual Feed
No Paper Sensor
K Mode
Sensor
Tray 2 No Paper Sensor
