Xerox Phaser 6500 Service Manual

1-10 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Information
Control Panel

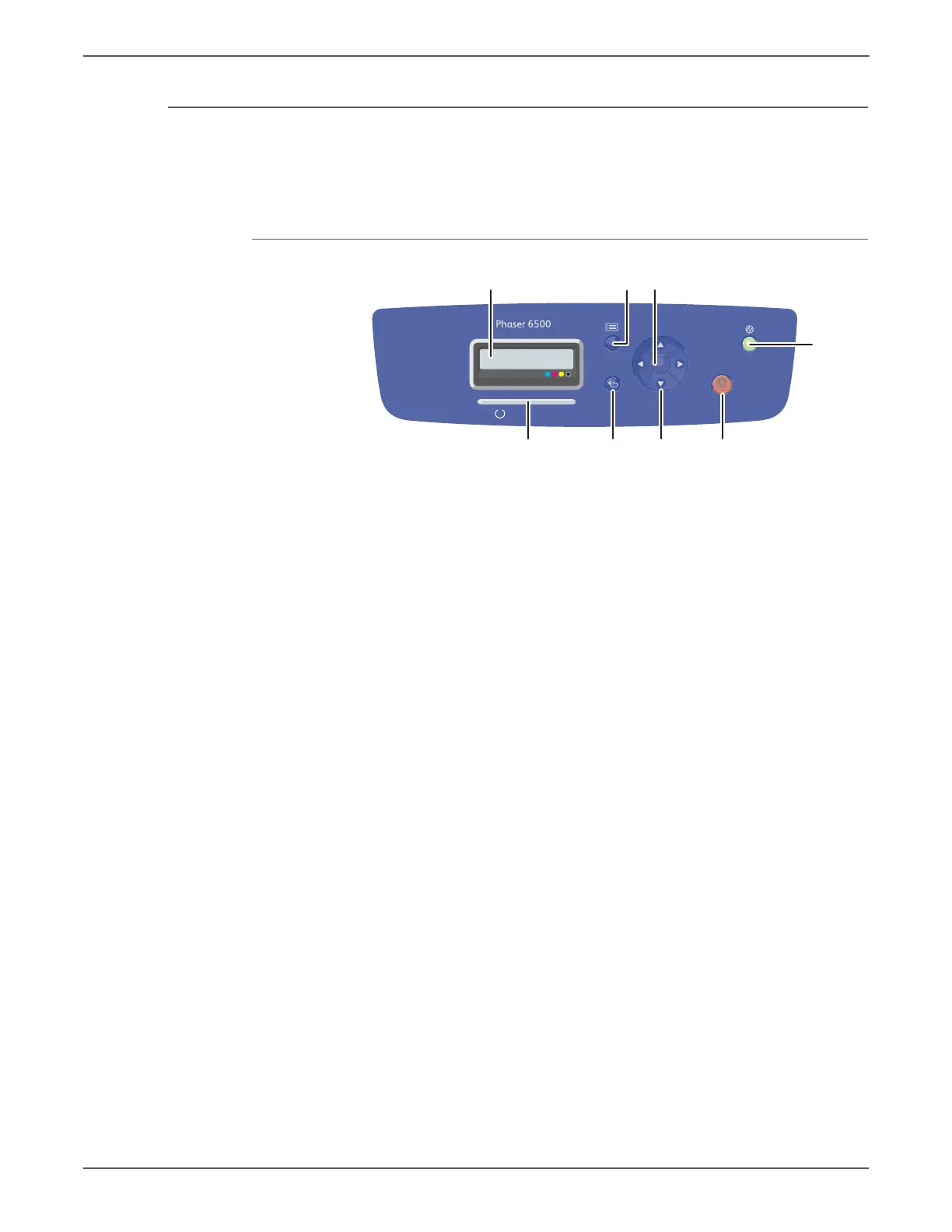

The Control Panel consists of multiple LEDs, a display, and several function
buttons. These buttons are used to navigate the menu system, perform functions,
and select modes of operation.
SFP Control Panel Button Descriptions
1. Display Displays status messages, menus, and toner
levels.
2. Menu button Scrolls to the menu option. Switches the display
between the menus and the print screen.
3. OK button Selects the displayed menu option and also
prints reports and lists.
4. Wake Up / Power
Saver button
Stays lit in Power Save mode. Press to exit Power
Save mode and “wake up” the printer when in
sleep mode. When printer is idle, press to
manually put the printer in sleep mode.
5. Cancel button Cancels the current print job.
6. Navigation / Menu
select buttons
Up / Down arrows scroll up and down through
the menu display.
Back / Forward arrows move left and right
through the menu display.
Back arrow backs out of a menu level. or
displays the Walk-Up Features menu.
7. Return button Lights red to indicate an error condition or
warning that can be resolved by the user.
Blinks when an error occurs that cannot be
resolved by the user. Off when the printer is
operating properly.
8. Status Indicator light
■ Lights green when ready to receive data.
■ Blinks green when busy receiving data.
■ Lights red to indicate an error condition or
warning that can be resolved by the user.
■ Blinks when an error occurs that cannot be
resolved by the user.
■ Off when the printer is in Energy Saver mode.
OK
123
4
5678
s6500-006
!
