Xerox Phaser 6500 Service Manual

4-40 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Duplex Clutch
The Duplex clutch engages drive to the rollers. To test the clutch:
Note
Close the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Run the Duplex Clutch test: Engine Diag > Motor Test > Duplex Clutch.
A click is heard when the clutch is energized.To test the clutch and the duplex exit
motor:
1. Enter Service Diagnostics (page 4-8).
2. Open the Front Cover.
3. Run the Exit Motor Full2 test: Engine Diag > Motor Test > Exit Motor Full2.
4. While the motor is running, press the Up arrow to find Duplex Clutch. Press
OK to run the test.

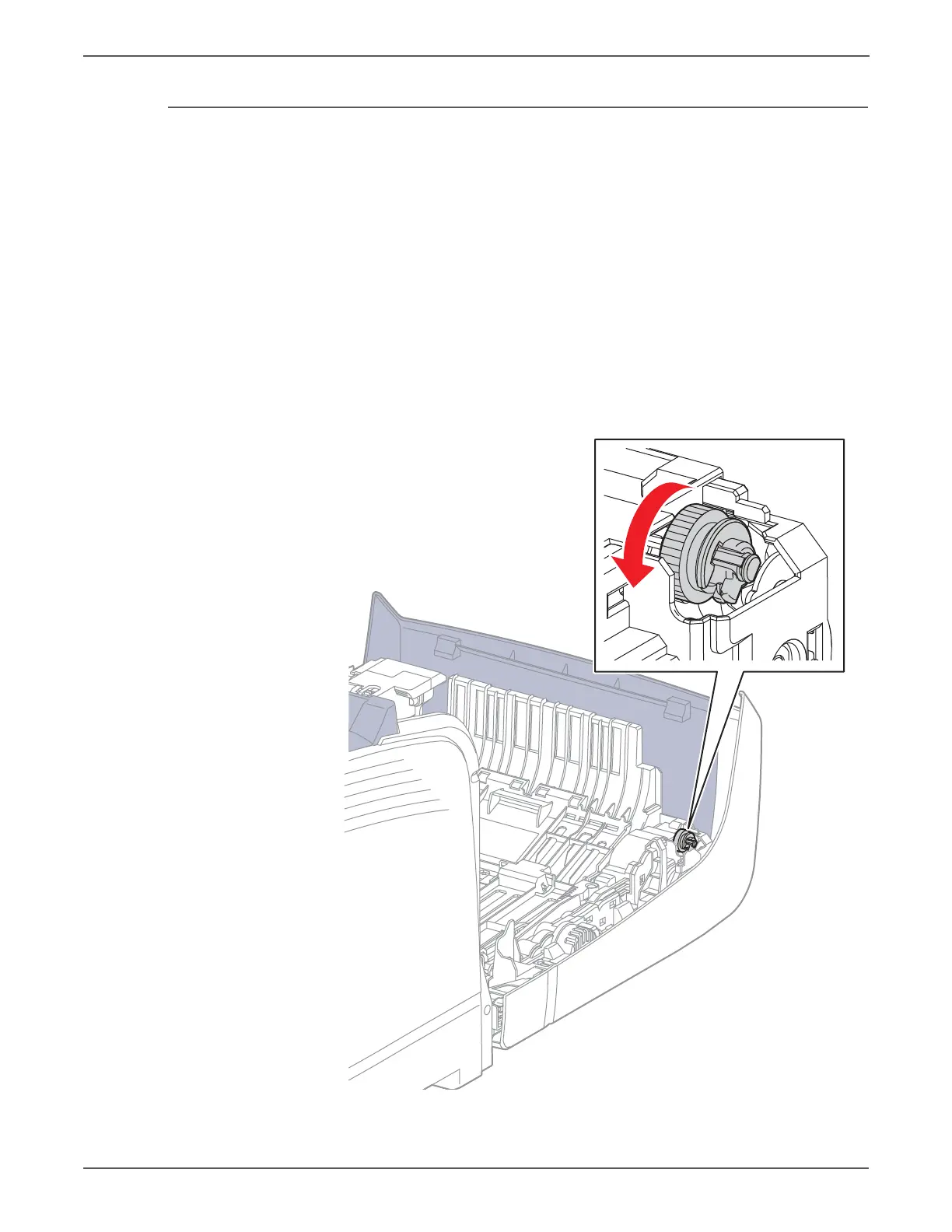

5. Check that the gear is rotating
.
6. Press Cancel to stop the test.
7. Press the Down arrow to find Exit Motor Full2 and Cancel the test.
s6500-127
