Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-15
Theory of Operation
Media Path Components

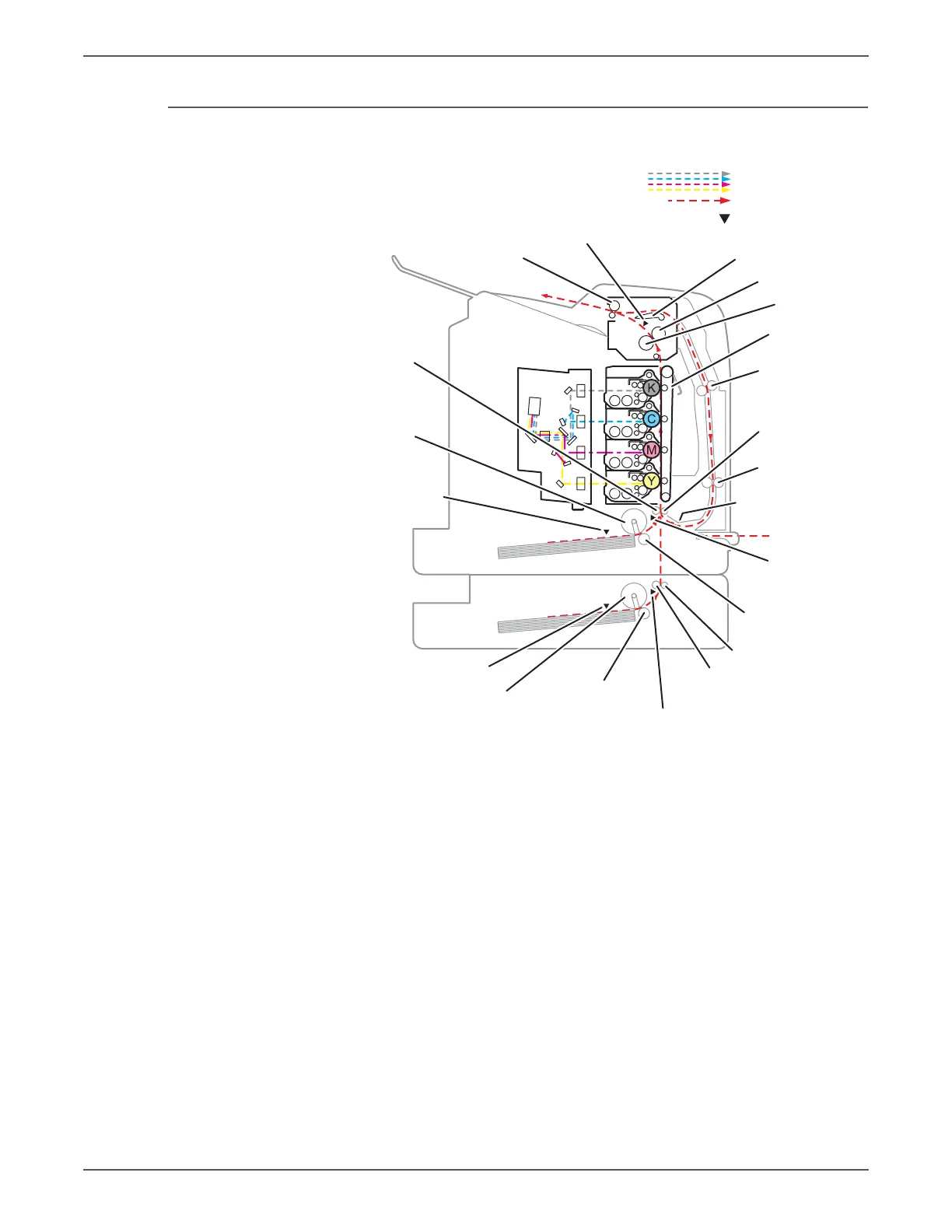

Media path components are shown in the following figure.
s6500-033
: Laser Beams
: Media Path
: Paper Sensors
Exit Roller
Duplex Gate
Heat Roller
Transfer Belt
Pressure Belt
Registration
Roller
(Rubber)
Duplex Roller
Exit Sensor
Registration
Roller (Metal)
Turn Roller(Metal)
Turn Roller (Rubber)
Manual Feed
No Paper Sensor
Registration
Sensor
Paper Path Sensor
Separator Roller
Separator Roller
Tray 2 No Paper Sensor
Tray 1
No Paper Sensor
Feed Roller
Feed Roller
Duplex Roller

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
