Xerox Phaser 6500 Service Manual

8-124 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP LVPS

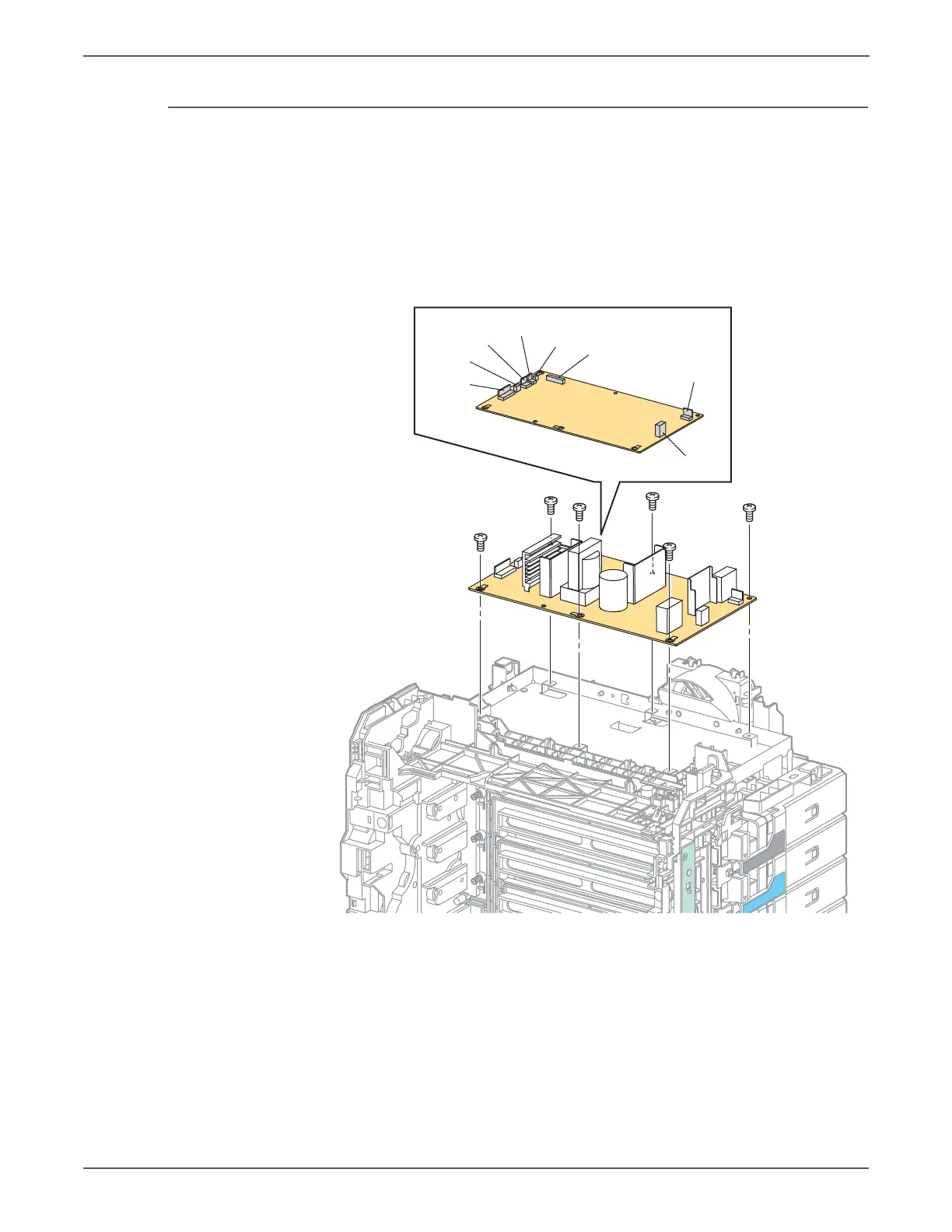

SFP PL8.2.1 (PWBA LVPS 110V & PWBA LVPS 200V)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Disconnect all connections from the LVPS.
5. Remove the 6 screws (silver, metal, 6mm) that secure the LVPS to the frame
and remove the LVPS from the printer.
s6500-308
(P502)
(P504)
(P501)
(P47)
(P48)
(P44)
(P503)
(P40)
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
