Xerox Phaser 6500 Service Manual

4-46 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Tray 2 Drive Clutch
The Tray 2 Drive Clutch engages drive to the turn rollers. To test the Drive Clutch.
Note
Do not remove the Optional Feeder from the printer and close the Interlock
Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Run the Option Turn Roll test: Engine Diag > Motor Test > Tray 2 Turn Roll.
A click occurs when the clutch is energized.To test the turn clutch in combination
with the turn rollers:
1. Enter Service Diagnostics (page 4-8).
2. Remove Trays 1 and 2.
3. Run the Option Feeder Motor Full2 test: Engine Diag > Motor Test > Tray 2
Feeder Motor Full2.
4. While the motor is running, press the Up Arrow button to find Option Turn
Roll. Press the OK button to run the test.

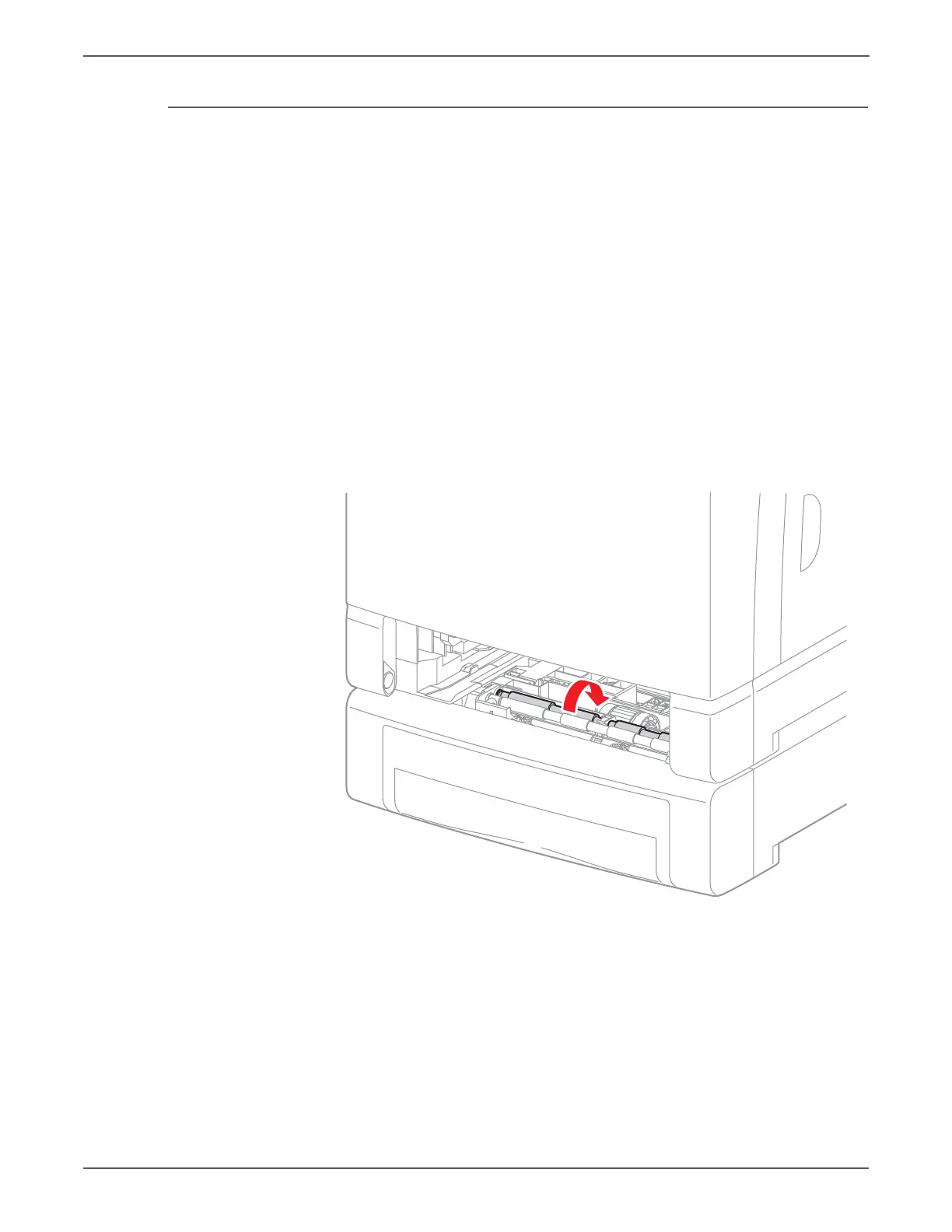

5. Check that the turn rollers are rotating.
6. Press Cancel to stop the test.
7. Press the Down arrow to find Option Feeder Motor Full2.
8. Press Cancel to stop the test.
s6500-133
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
