Xerox Phaser 6500 Service Manual

8-144 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
MFP Image Processor Board
MFP PL8.1.2 (PWBA ESS AIO)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Rear Cover (page 8-43).
6. Remove the IP Board Shield (page 8-142).
7. Remove the Fax Board (page 8-143).
8. Unplug all connectors from the Image Processor Board.
9. Release the hook of the USB Harness Guide (PL8.4.5), remove the guide from
the printer.

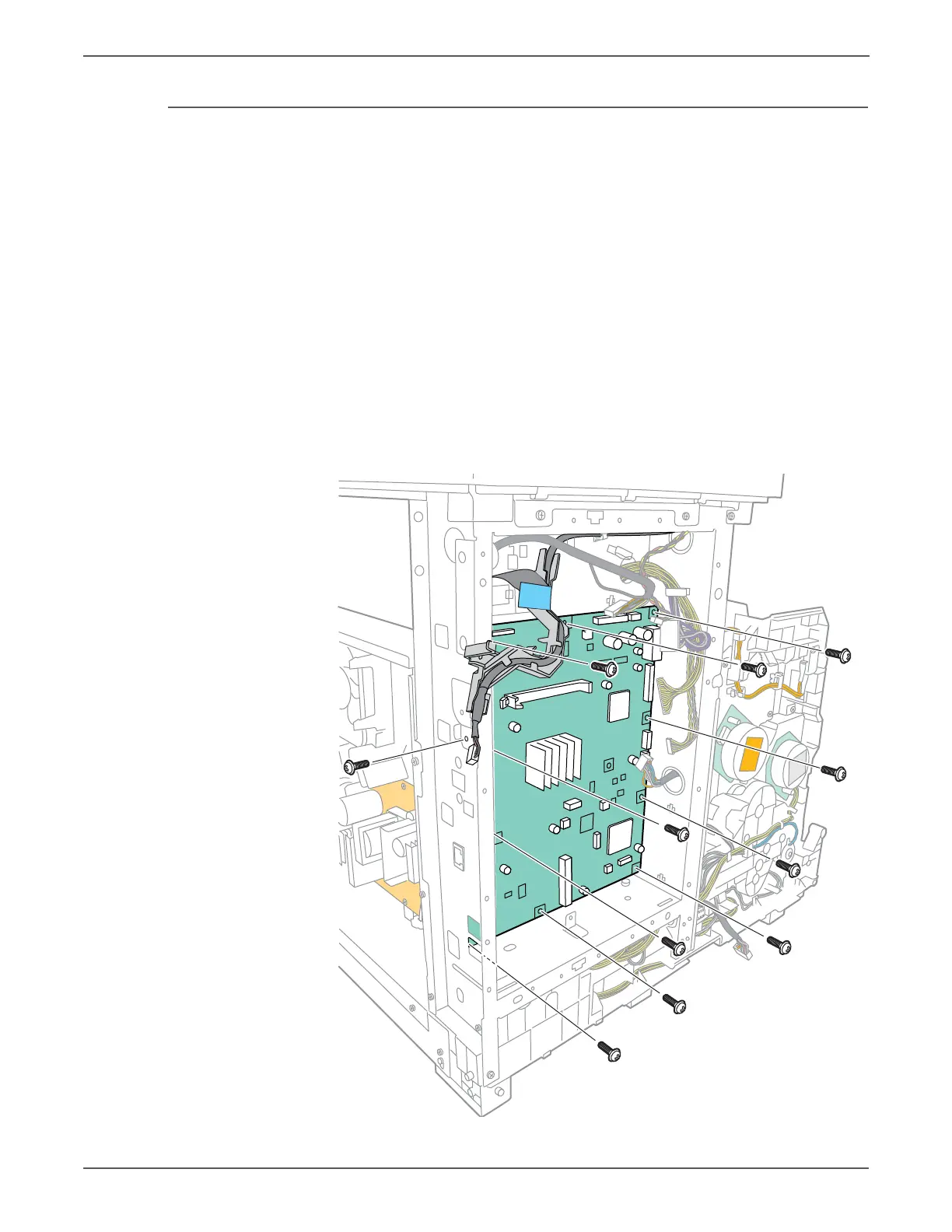

10. Remove the ten screws (silver, 6mm) that attach the Image Processor Board to
the chassis.
11. At the rear of the printer, remove the screw (silver, 4mm) that secures the USB
connector to the Card Cage and remove the board.
s6500-333
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
