Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-79
Service Parts Disassembly
Tray 1 No Paper Sensor
PL3.2.13 (Sensor Photo)
1. Remove the Upper Frame Assembly (SFP page 8-51; MFP page 8-67).

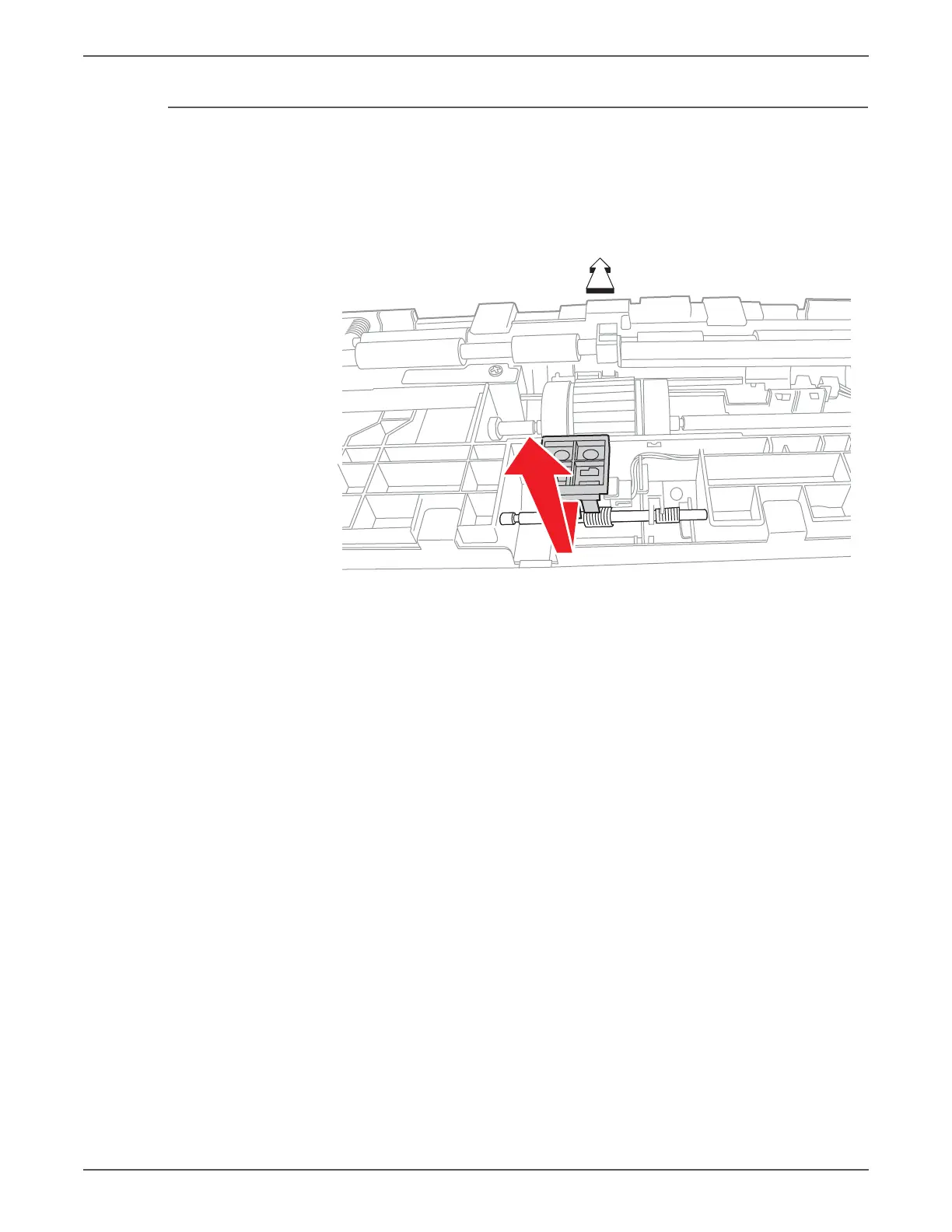

2. Release the three hooks that secure the Tray No Paper Sensor to the Feeder.
3. Rotate the actuator flag out of the way and remove the sensor.
4. Disconnect P/J234 from the sensor.
s6500-247
Front
To Next Page
