Xerox Phaser 6500 Service Manual

8-48 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Feeder
Drive Clutch and Regi Bearing Kit
PL3.1.97 (Kit Clutch Assy Drv)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (SFP, page 8-18; MFP, page 8-37).

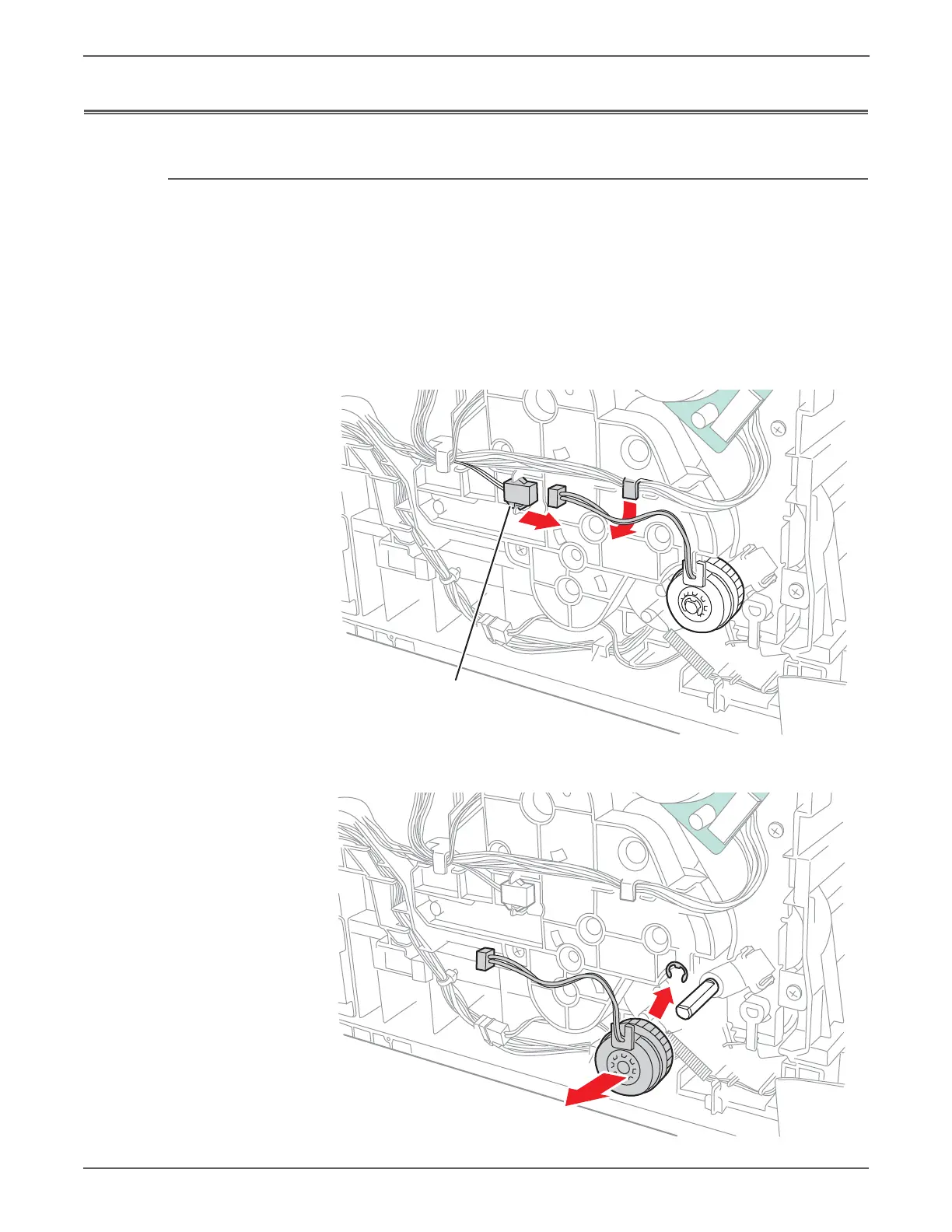

4. Release the Drive Clutch harness from the cable restraint on the Feed Drive
Assembly.
5. Disconnect the Drive Clutch connector, P/J262. Allow the relay connector to
remain with the printer side of the harness.
6. Remove the E-ring that secures the Drive Clutch on the shaft, using a
miniature screwdriver, and remove the Drive Clutch.
s6500-225
P/J262
s6500-226
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
