Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-45
Service Parts Disassembly
MFP Top Cover
MFP PL1.1.4 (Cover Top)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the Right Side Cover (page 8-40).
6. Remove the Rear Cover (page 8-43).
7. Remove the Inner Pole Cover (page 8-44)

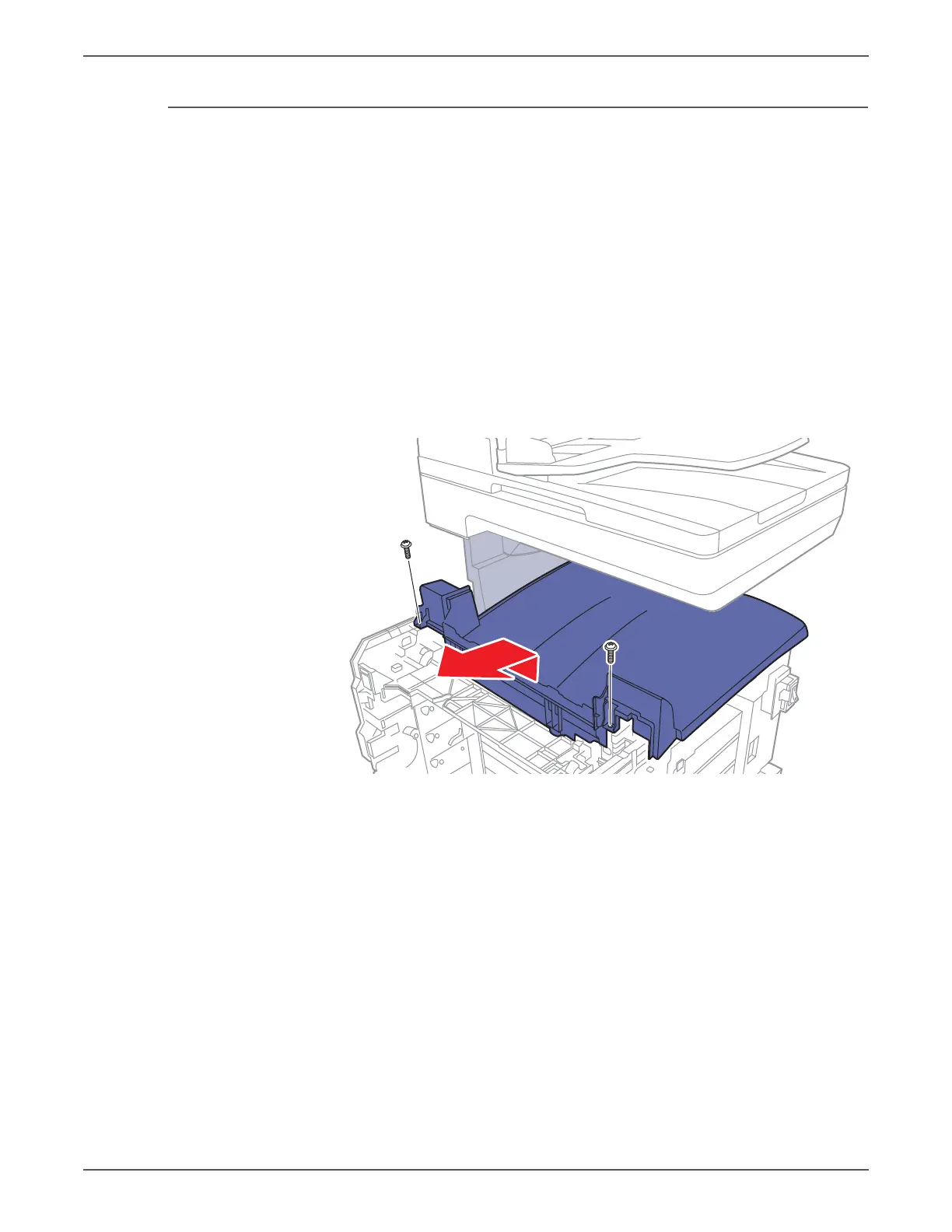

8. Remove the two screws (silver, tap, 8mm) that secure the Top Cover to the
chassis.
9. Lift the front of the Top Cover to release the cover from the 2 bosses and
remove.
s6500-222
