Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 2-35
Theory of Operation
Imaging Unit
The Imaging Unit is a customer replaceable item that carries out the charging,
development, transfer, and cleaning steps in the print process (see “Print Process”
on page 2-2).
The Imaging Unit consists of the following items:
• Developers — Each of the four developers includes the augers that distribute
the toner and the magnet roller that applies toner to the drum to develop the
latent image.
• Drums — Each drum is given a latent image to which toner is applied by the
developer. The resulting toner image is transferred to the paper.
• CRUM — Information specific to the Imaging Unit is stored in the CRUM.
• Erase Lamp (LED) — The light of the LED passes through the lens of the
Developer, illuminates the drum, and eliminates the charge on the drum.

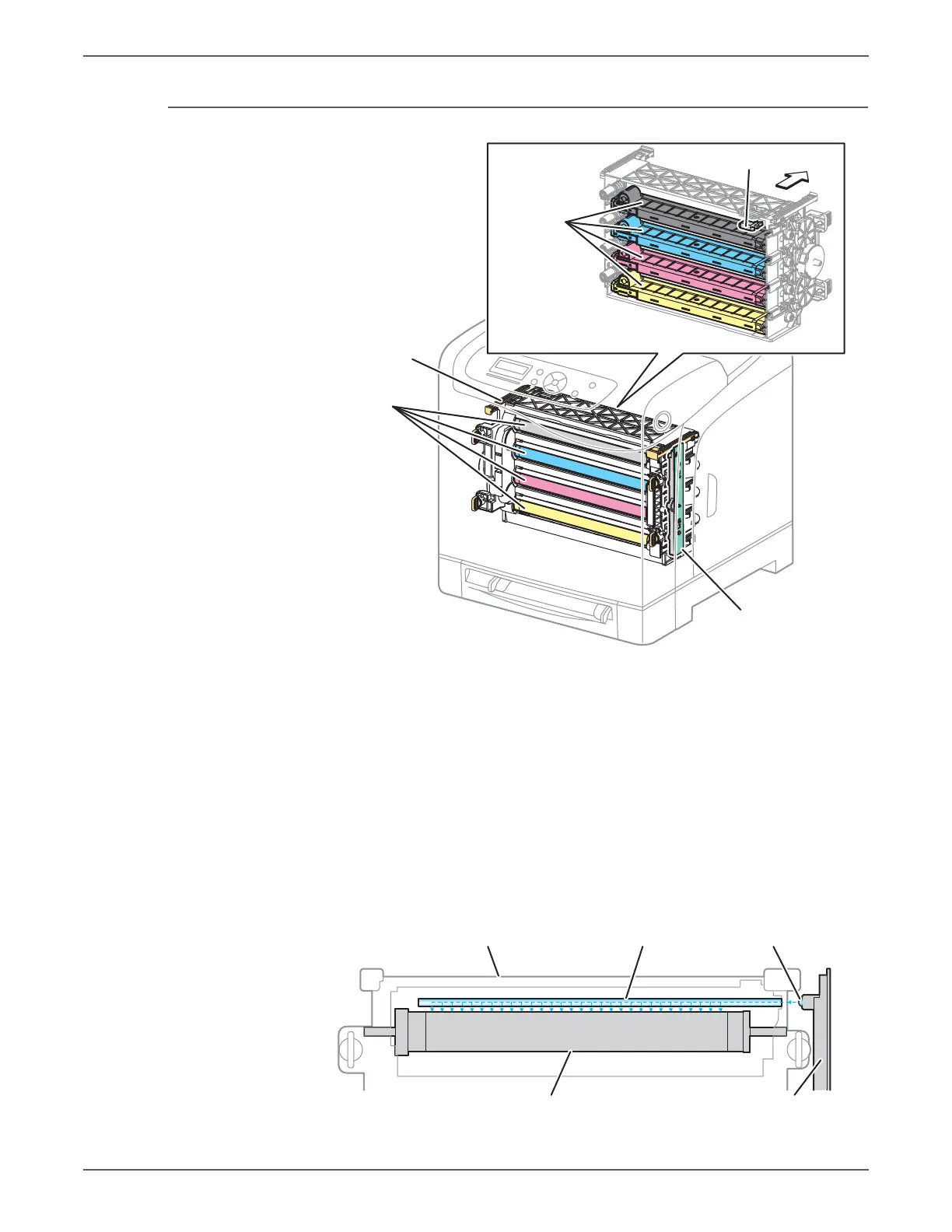

s6500-051
Imaging Unit
Drums
Erase LED Assembly
Developers
CRUM
Rear View
Front
s6500-052
Imaging Unit Erase LampErase Lens
Erase LED Assembly
Drum

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
