Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-59
Service Parts Disassembly
MFP Chassis
MFP Top Plate Assembly
MFP PL 8.2.2 (Plate Assy Top)
1. Perform the service preparation steps on page 8-3.
Note
Removal of the IIT Sub-assembly is not necessary if you have a “stubby”
screwdriver for removing the screws from the Top Plate in step 10.
2. Remove the IIT Sub-assembly. (page 8-195)
3. Remove the MFP Rear Cover (page 8-43).
4. Remove the MFP Top Cover (page 8-45).
5. Remove the MFP LVPS Card Cage (page 8-64).

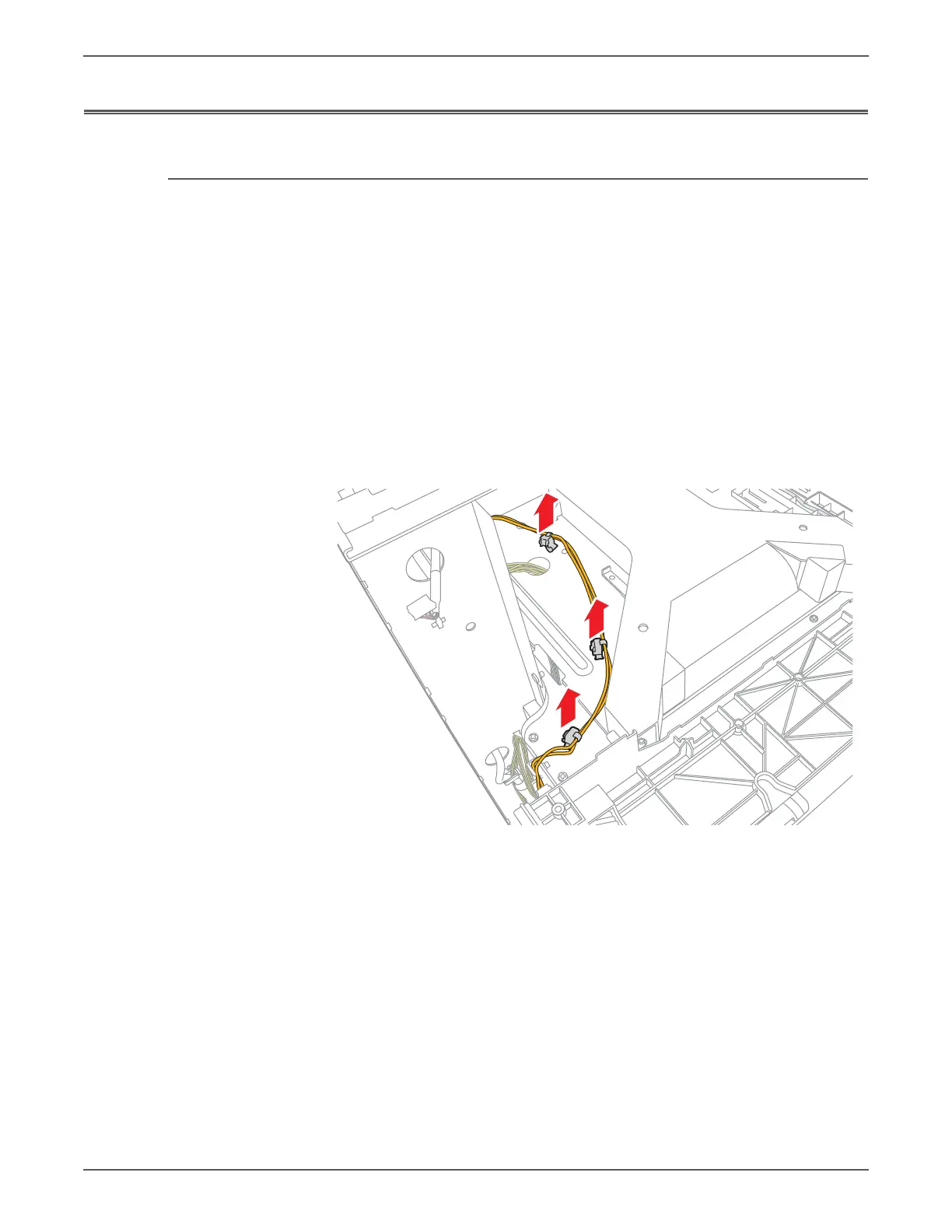

6. Release 3 harness clamps that secure the Interlock harness to the Top Plate
Assembly.
s6500-337
