8-60 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

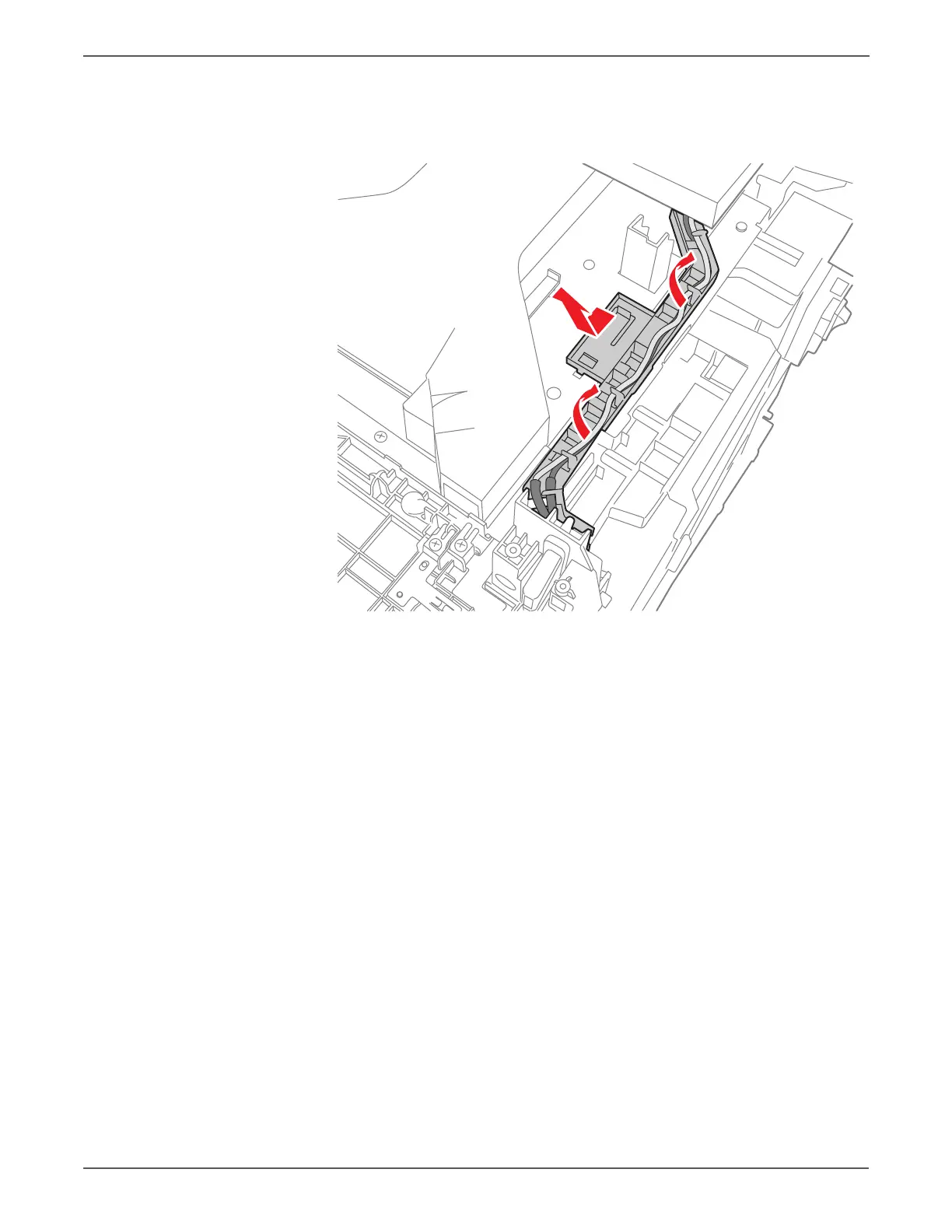

7. Release the Fuser Harness Assembly (PL6.1.2) from the MFP Fuser Harness
Guide (PL8.2.1).
8. Release the boss of the MFP Fuser Harness Guide, then slide the MFP Fuser
Harness Guide forward and lift to remove it from the printer.
s6500-251
