Xerox Phaser 6500

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-61
Service Parts Disassembly

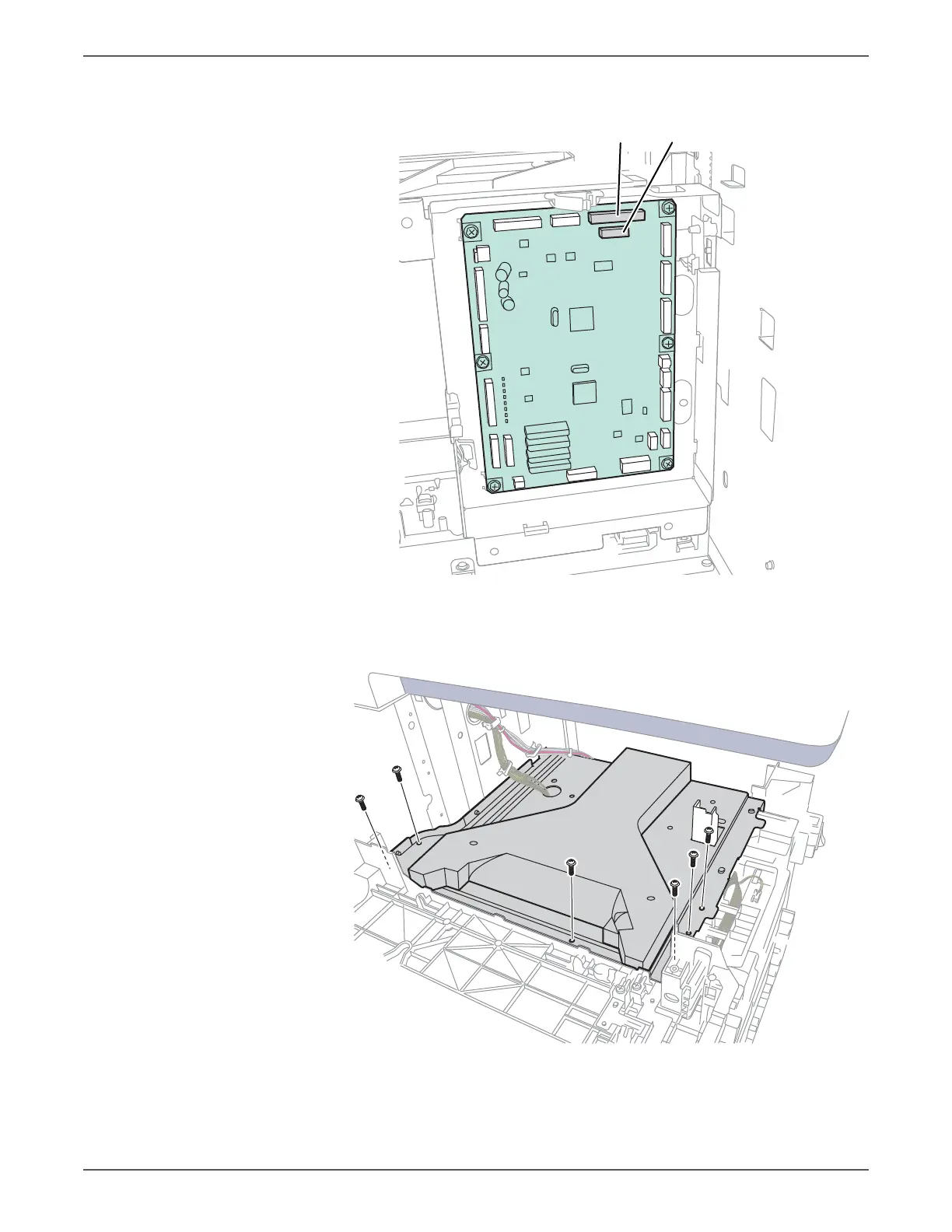

9. Disconnect P/J10 and P/J11 on the MCU Board, then pull the connectors
through the hole in the Top Plate Assembly.
10. Remove six screws (silver, tap, 8mm) on the upper side of the Top Plate
Assembly.
s6500-252
P/J11P/J10
s6500-488
