8-28 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
SFP Left Front Holder
SFP PL 1.2.29 (Holder Assy Front L)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Duplex Unit (page 8-162).
For the next two steps, refer to the Front Cover removal procedure
(page 8-22).

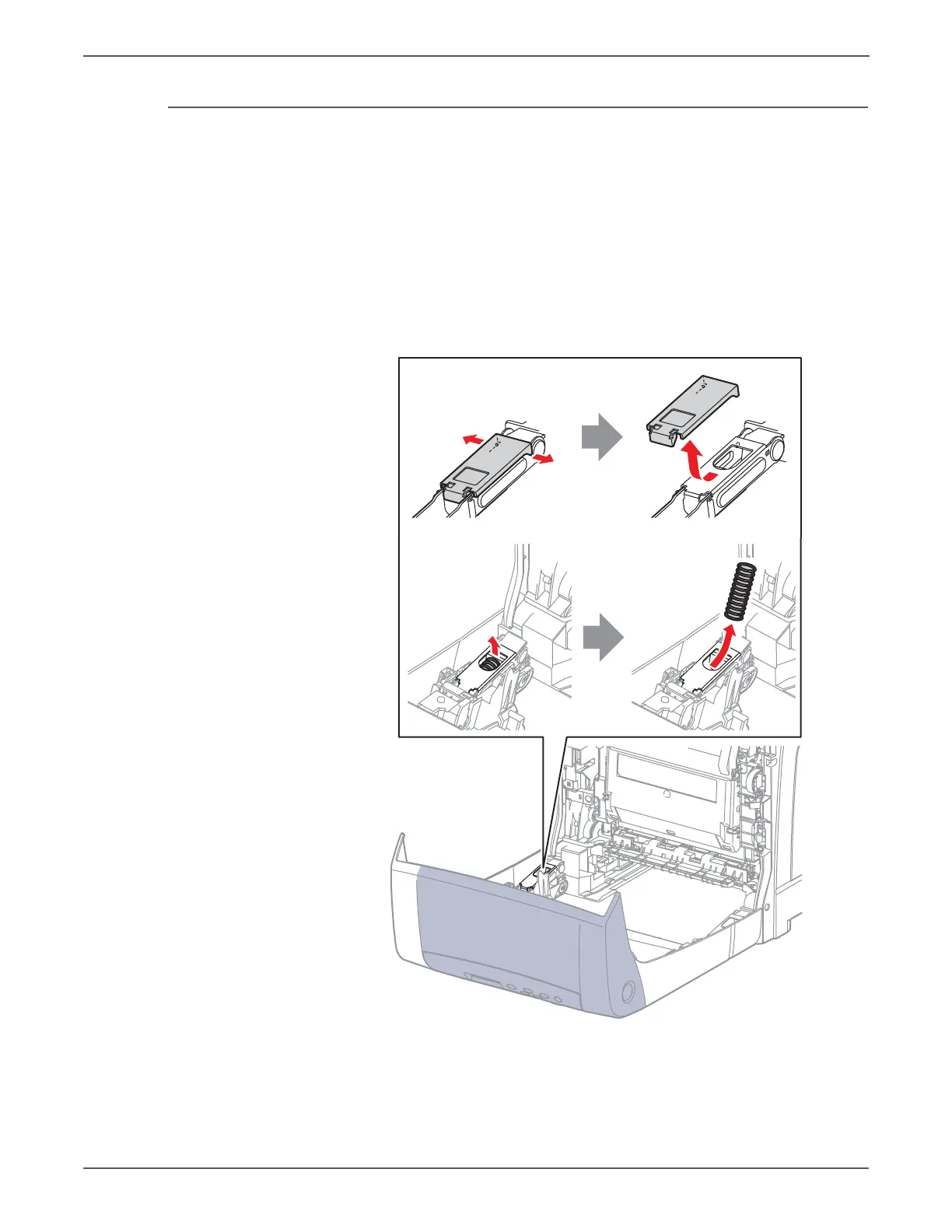

4. Remove the left link cover and spring.
