Xerox Phaser 6500 Service Manual

2-16 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation

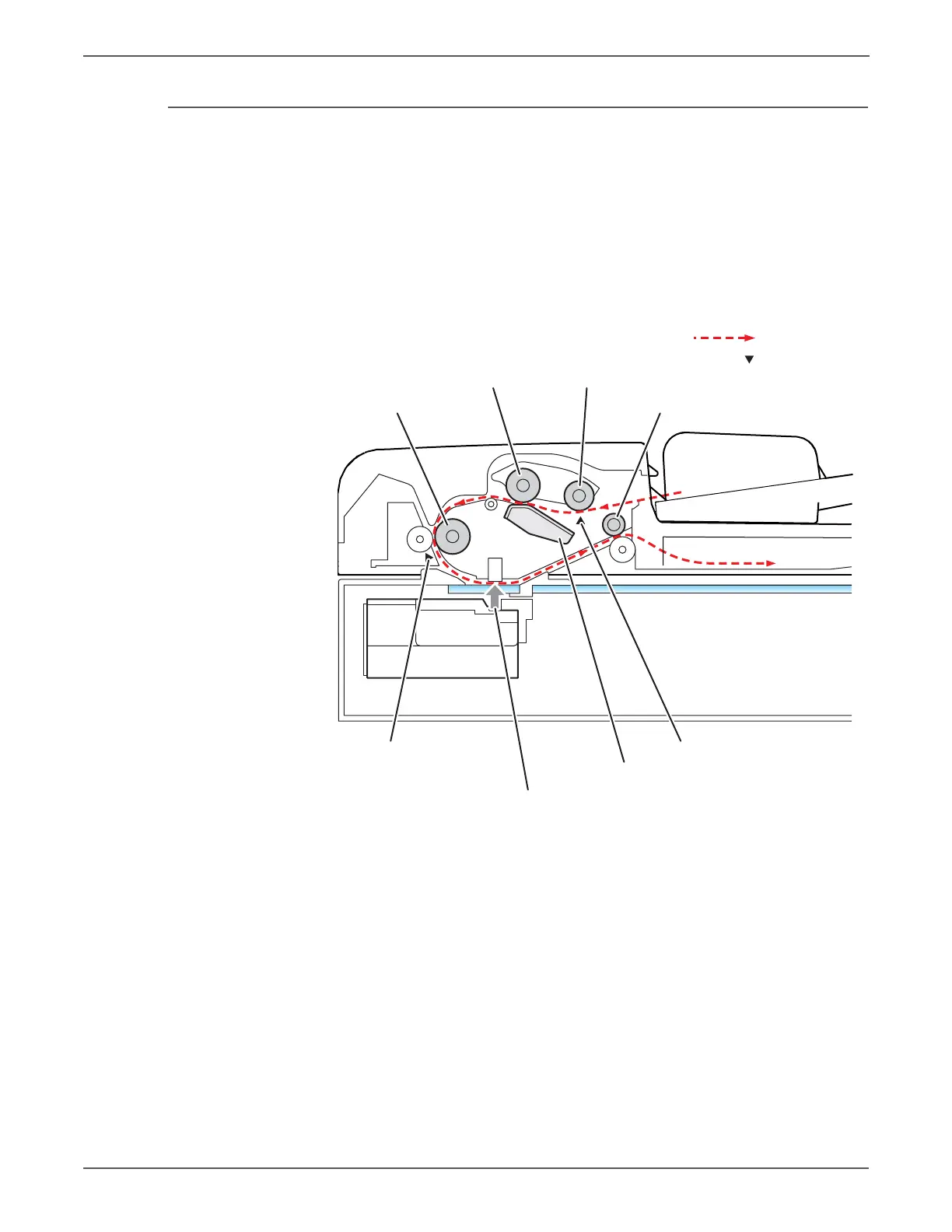

ADF Media Path
When the sheet feeding from the Document Feeder Tray of the ADF starts, the
Nudger Roll and the Feed Roll that rotate driven by the torque from the ADF
Motor. The sheet is nipped between the Feed Roll and the ADF Separator Pad while
being fed into the ADF.
Inside the ADF, the sheet is fed by the Takeaway Roll that rotates by the torque
from the ADF Motor to the Scanner Home (CVT: Constant Velocity Transport)
Position in the Carriage Assy, and is scanned.
After being scanned, the sheet is ejected to the Document Output Tray of the ADF
by the Exit Roll that rotates by the torque from the ADF Motor.
s6500-471
Exit RollerTakeaway Roller
Nudger RollerFeed Roller
Home Position (CVT Position)
Feed Sensor Document Sensor
ADF Separator Pad
: Paper Transfer
: Paper Sensors
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
