Xerox Phaser 6500 Service Manual

9-2 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Parts Lists
Serial Number Format
Changes to Xerox products are made to accommodate improved components as
they become available. It is important when ordering parts to include the following
information:
• Component's part number
• Product type or model number
• Serial Number of the printer
The serial number is found on a label located on the right-side frame near the
Fuser. To view the Serial Number you must open the Front Cover, lower the Transfer
Belt, and swing out the right end of the Fuser.
The nine-digit serial number uses the format PPPRSSSSS or MMMSSSSSSc.
• PPP = Three digit alphanumeric product code
• MMM = Three digit numeric manufacturing location code
• R = Single digit numeric revision digit, 0-3. To be rolled when the ending serial
number is reached or when a major product change occurs.
• SSSSS(S) = Five or six digit numeric serial number based on the following
table. The serial numbers are reset only when the ending number is reached or
when the revision number is rolled.
• c = Check digit (correct number from check digit algorithm)
Product Code Mfg. Location Code
Product
YXE — 6500_N, 110V Engine
YRB — 6505_N, 110V Engine
YTB — 6505_DN, Duplex, 110V Engine
YXG 316 6500V_N, 220V Engine
YRX 316 6505V_N, 220V Engine
Product
Starting Serial Number Ending Serial Number
6500_N, 110V Engine 10001 99999
6505_N, 110V Engine 10001 99999
6505_DN, Duplex, 110V Engine 10001 99999
6500V_N, 220V Engine 000601 100500
6505V_N, 220V Engine 360101 460000

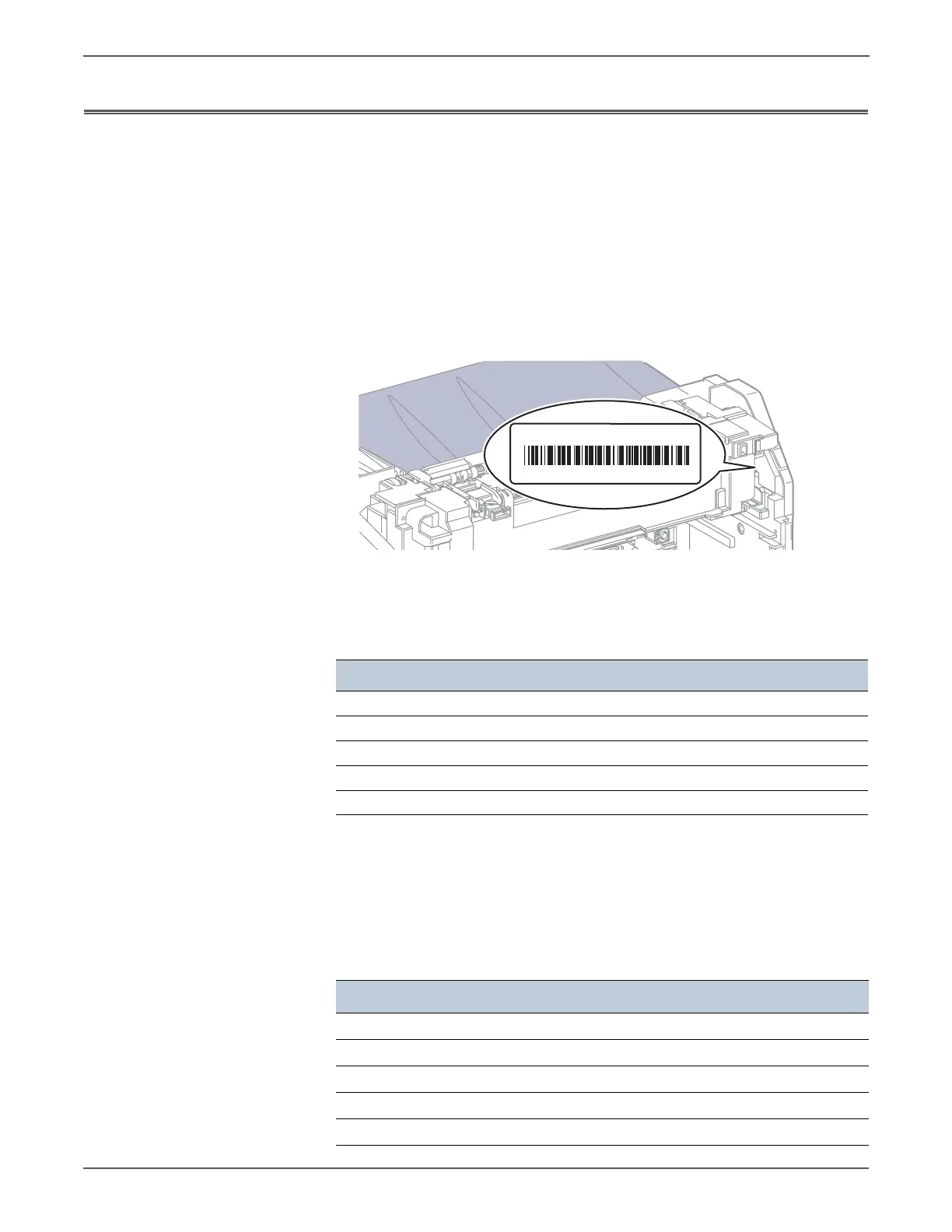

s6500-386
S/N: YXE030001
MANUFACTURED: September, 2010
