Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-135
Service Parts Disassembly
SFP Toner Door Switch
PL5.1.9 (Switch)
1. Turn Off power and disconnect the power cord from the wall outlet.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Remove the Right Side Cover (page 8-17).
5. Remove the Toner Door (page 8-21).

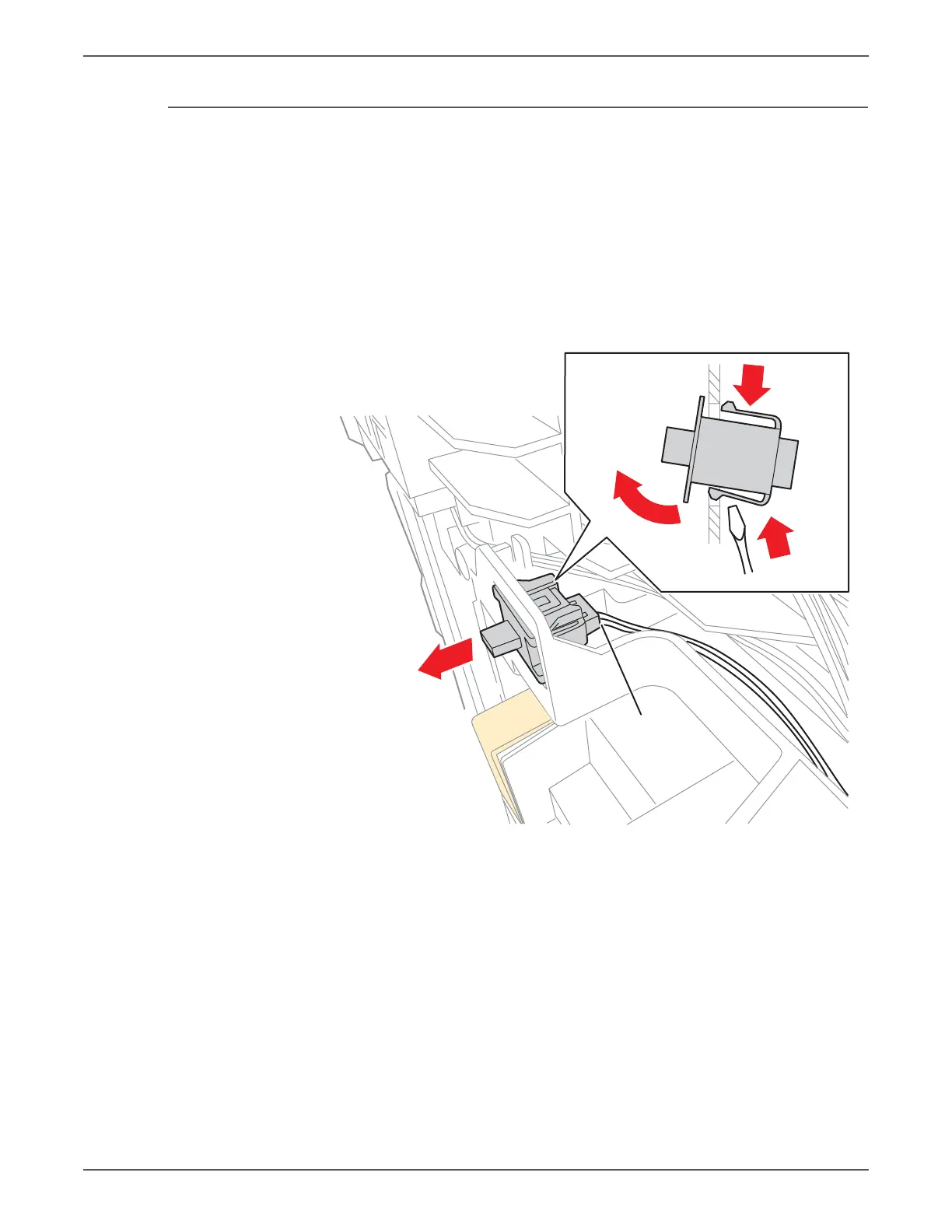

6. Using a miniature screwdriver, release the hooks that latch the switch in the
frame and remove the switch.
7. Unplug the switch from the harness connector (P/J291).
s6500-322
P/J291
1
2
3
