Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-179
Service Parts Disassembly
Optional Feeder Harness
PL12.3.23 Harn Assy Tray (J273-J419)
1. Remove the Optional Feeder (page 8-167).
2. Remove the front cover (page 8-168).
3. Remove the left side cover (page 8-169).
4. Remove the Feed Motor (page 8-177).

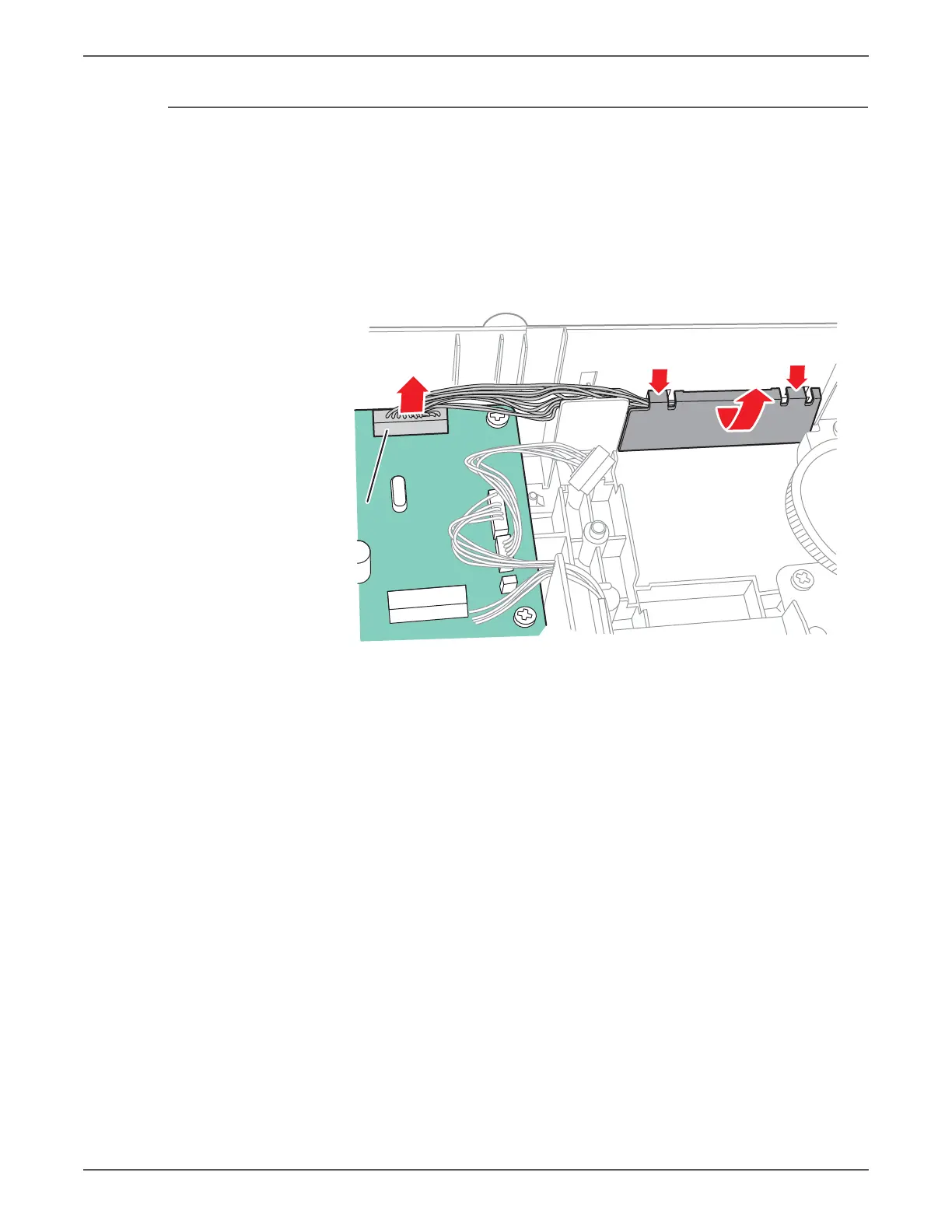

5. Disconnect P/J419 on the Feeder Board.
6. Release 4 hooks that secure the drawer harness cover and remove the cover.
s6500-362
P/J419

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
