8-12 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Toner Cartridges
PL5.1.21~24
Note
Although the illustrations for this procedure show the SFP, the details for
removing the Toner Cartridges are the same for the MFP.

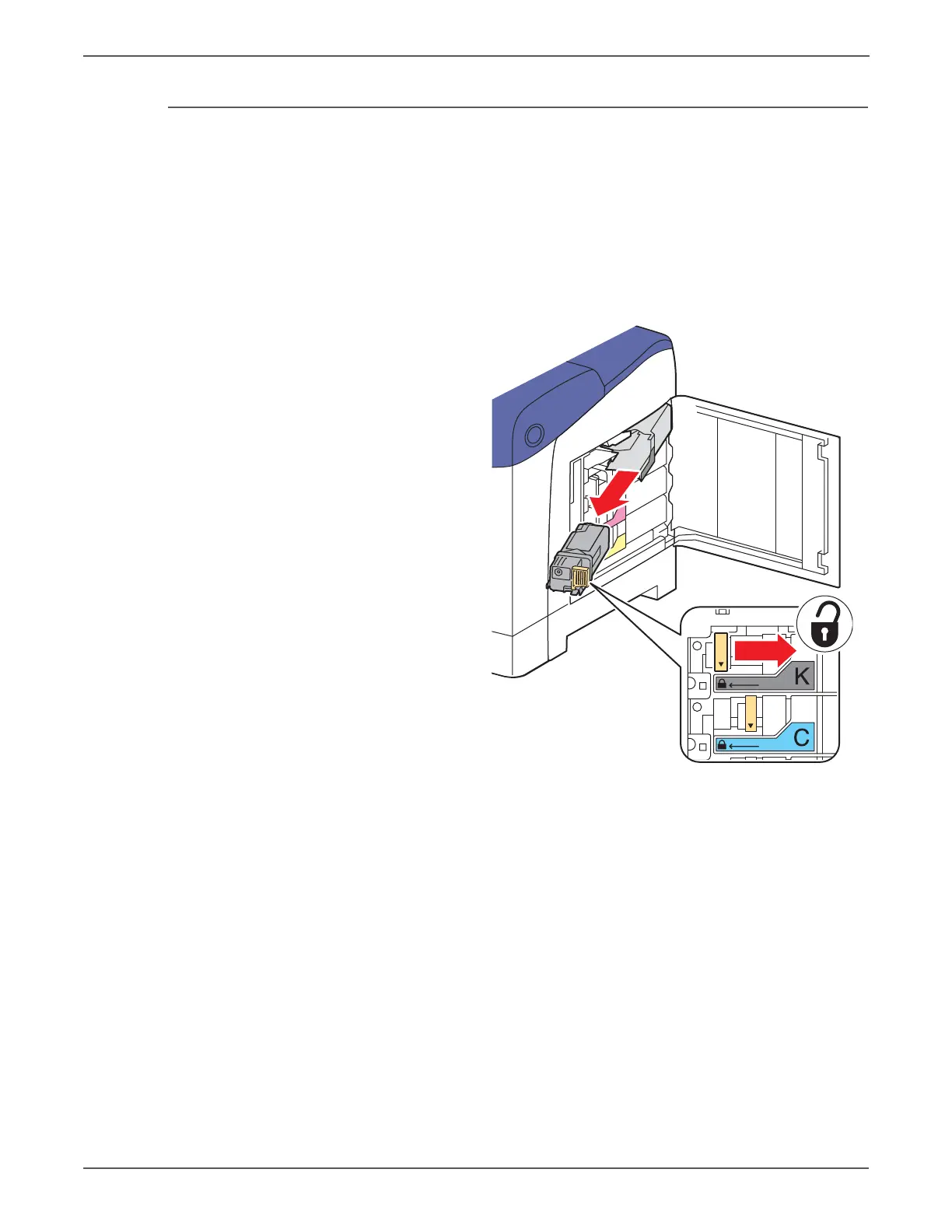

1. Open the Toner Door.
2. Push the Toner Cartridge handle toward the rear to release the lock.
3. Swing open the Toner Cartridge Holder and remove the cartridge as shown.
Replacement Note
When replacing the toner cartridge, be sure to push the handle all the way
forward to lock the toner cartridge in place.
K
C
M
Y
s6500-181
