Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-11
Service Parts Disassembly
Replacement Note

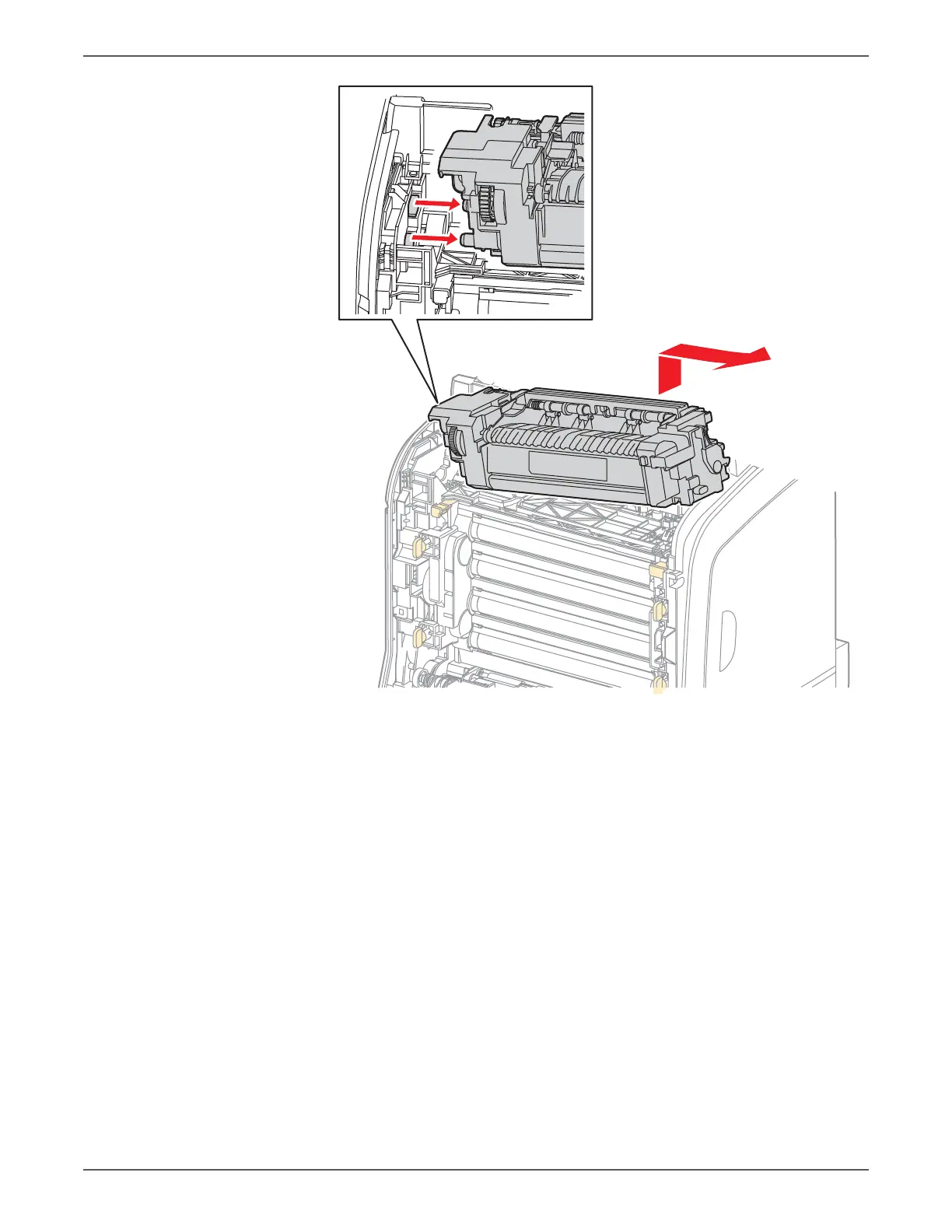

If a new Fuser is installed:
6. Reset the Fuser counter.
a. Power on the printer and allow it to reach Ready.
b. Press the Menu button (SFP) or System menu button (MFP).
c. Select Admin Menu > Maintenance (Mode) > Reset Fuser.
d. Click OK, then OK again at the Are you sure? prompt.
7. If the Fuser being replaced is at end of life, it is highly recommended
that the Feed Roller and Separator Holder also be replaced.
s6500-180

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
