Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-17
Service Parts Disassembly
SFP Right Side Cover
PL1.1.6 (Cover Side R)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Top Cover (page 8-15).
4. Open the Toner Door.
5. Remove the 6 screws (silver, tap, 8mm) that secure the cover to the chassis.
6. Release the hook at the front of the cover.
7. Swing the cover front out to release the three hooks on the Rear Cover, and
remove the Left Side Cover.
Hook

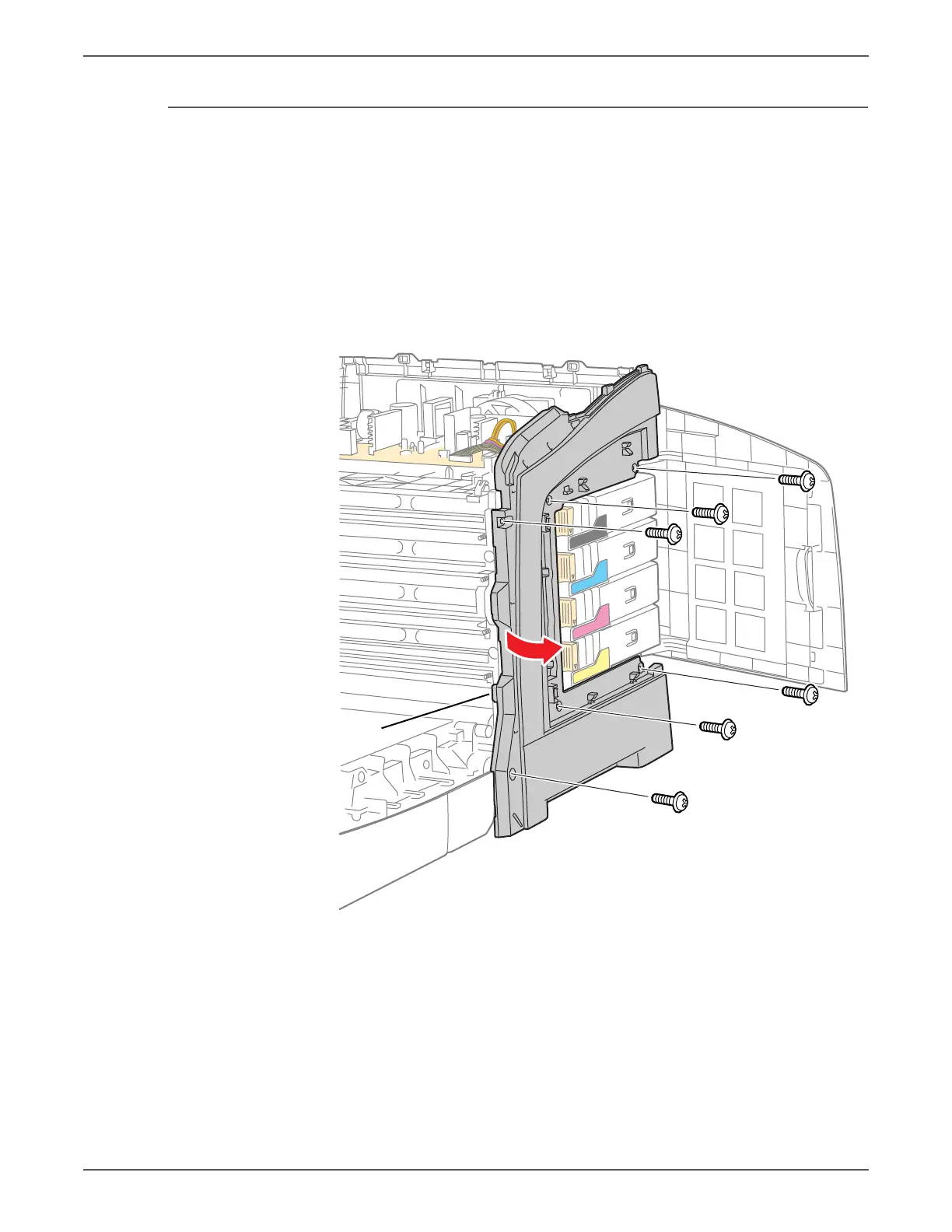

s6500-188
