Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-43
General Troubleshooting

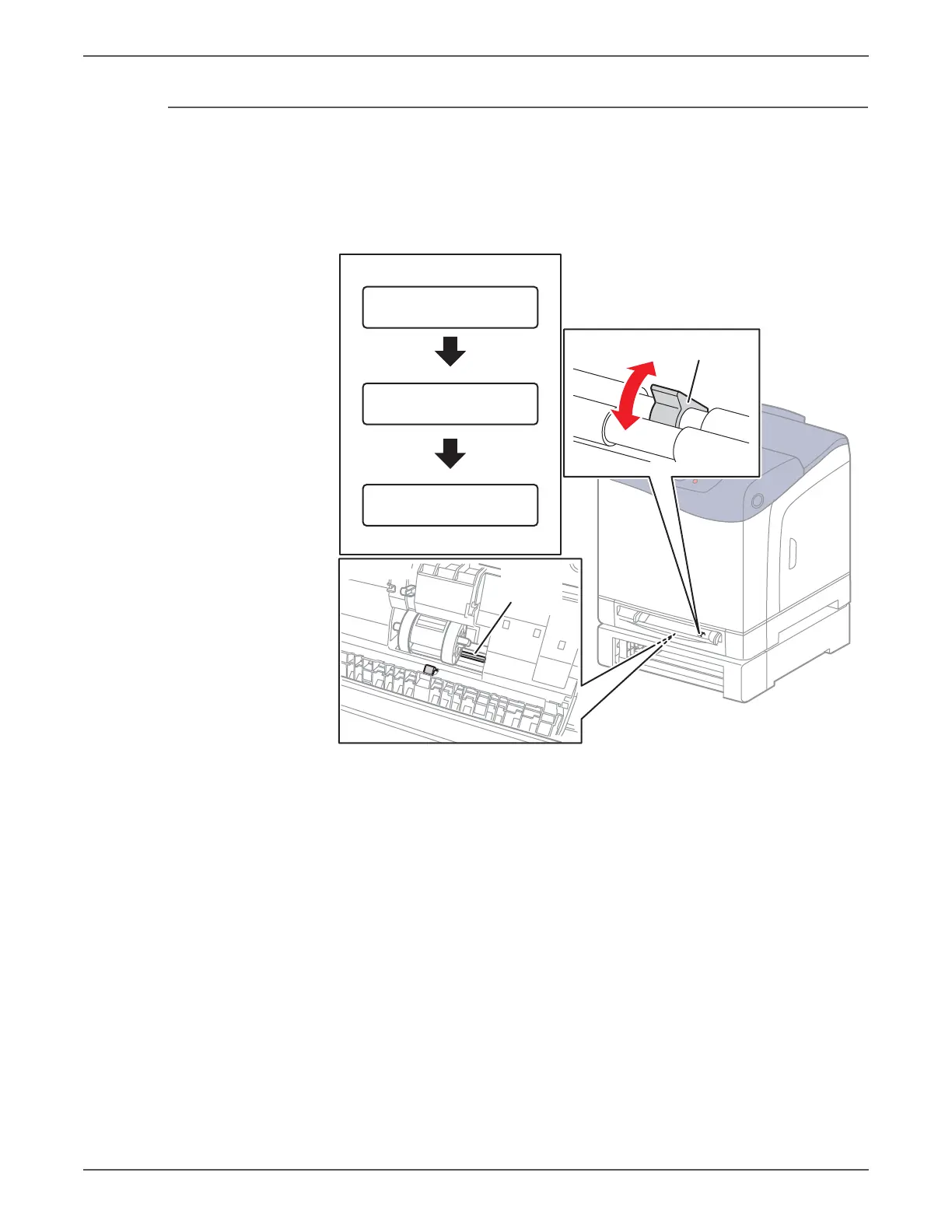

Tray 2 Paper Path Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Tray No Paper test: Engine Diag > Sensor Test > Tray 2 Path Sensor.
3. Remove Tray 2.
4. Reach into the Tray 2 cavity and move the actuator while checking the Control
Panel display.
Note
Press Cancel to stop the test.
s6500-130
Control Panel
Normal
Actuator
Option Path Sensor
L - 00
Option Path Sensor
H - 00
Option Path Sensor
L - 01
Actuator
Access
Underside

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
