Service Parts Disassembly
Tray 1 No Paper Sensor Actuator
PL3.2.32 (Actuator Assy No Paper)
1. Remove the Upper Frame Assembly (SFP page 8-51; MFP page 8-67).
2. Remove the Tray 1 No Paper Sensor (page 8-79).

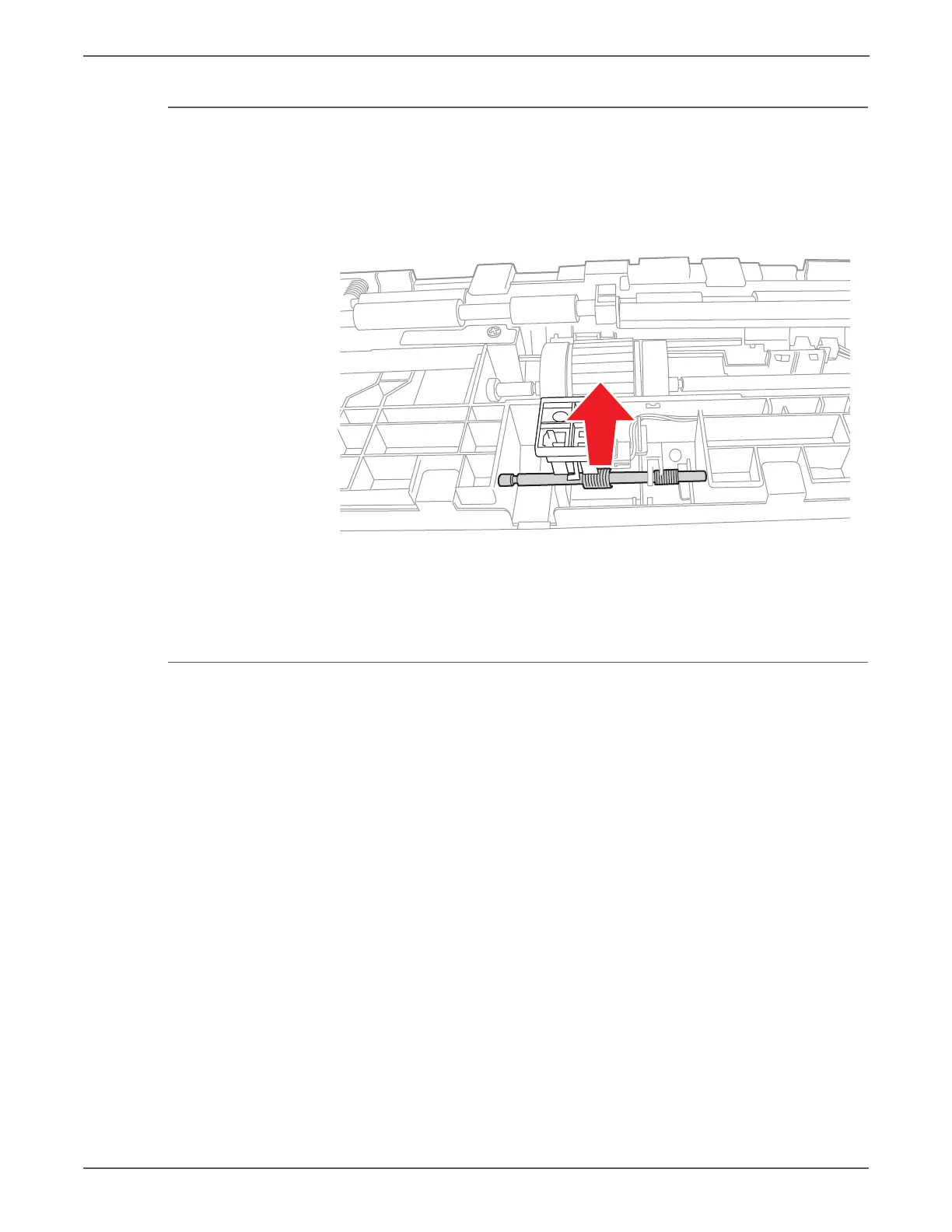

3. Release the right end of the actuator shaft from the hole in the Upper Feeder
Chute using a miniature screwdriver.
4. Remove the actuator and spring from the hole in the left side of the Upper
Feeder Chute.
5. Remove the spring from the actuator.
Lower Chute Assembly
PL3.2.27 (Chute Assy Low)
The Lower Chute Assembly is not a spared part, but must be removed in order to
gain access to the Tray 1 Registration Input Actuator and the Manual Feed Sensor
Actuator for troubleshooting purposes.
It is not necessary to power down the printer. In fact, it is necessary to leave the
printer powered up in some of the troubleshooting procedures to allow voltage
measurements.
1. SFP only: Remove the Rear Tray Cover.
2. Remove the Paper Tray.
3. Tilt the front of the printer up sufficiently access the Lower Chute Assembly.
4. At either end of the Lower Chute Assembly, pry the tab with the boss to
release the boss from the Feeder Assembly.
5. Swing the end of the assembly down, then shift the assembly to the left or
right (depending on the end you released) to free the other end, and remove
the assembly from the printer.
