Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-155
Service Parts Disassembly
MFP AC Power Inlet and Power Switch Harness
MFP PL8.3.7 (Switch Assy Inlet MG AIO [110V & 220V])
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the MFP Left Side Cover (page 8-37).
4. Remove the Outer Pole Cover (page 8-39).
5. Remove the MFP Right Side Cover (page 8-40).
6. Remove the MFP Rear Cover (page 8-43).
7. Remove the MFP Top Cover (page 8-45).
8. Remove the LVPS Card Cage (page 8-64).

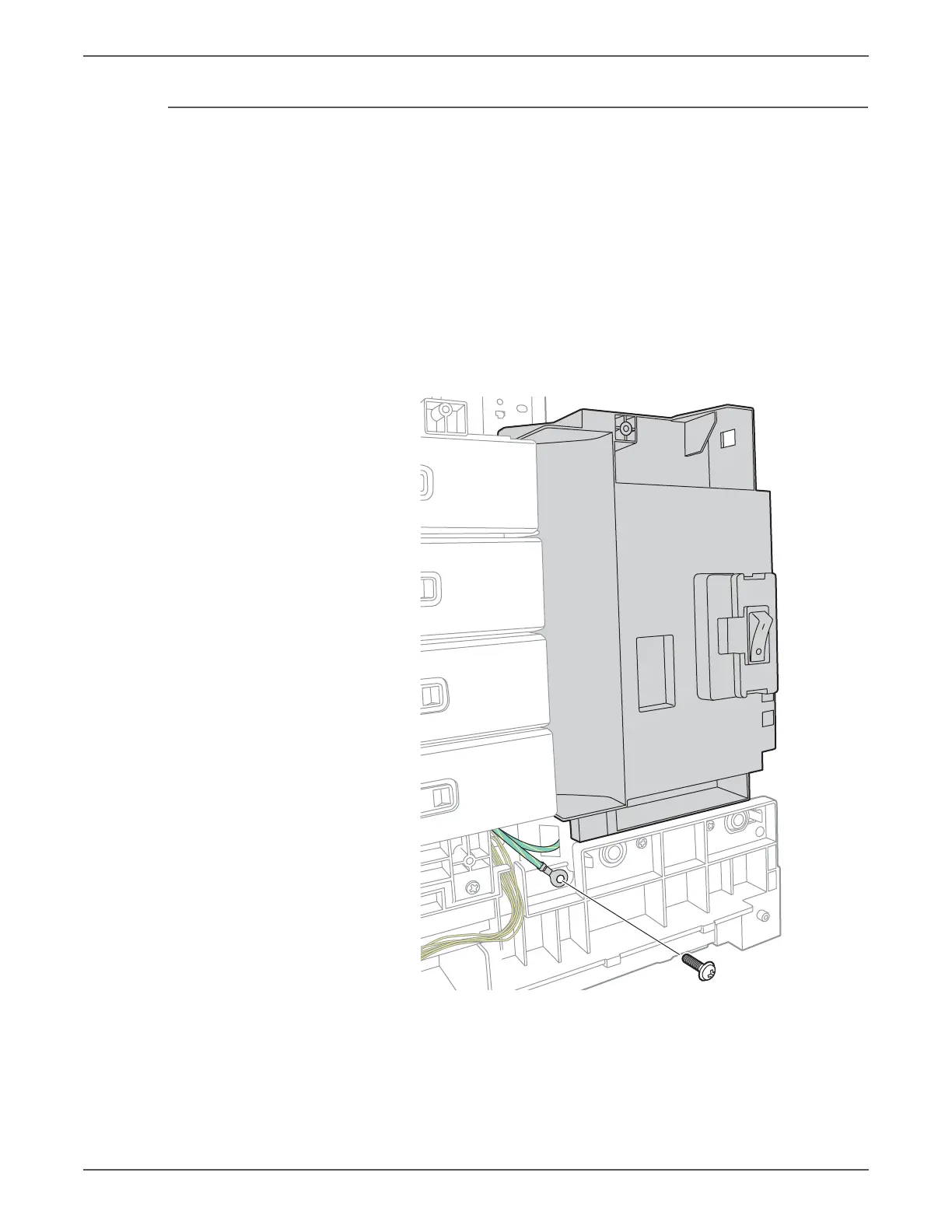

9. Remove the screw (silver, with washer, 6mm) that attaches the grounding
terminal to the frame.
s6500-340

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
