Xerox Phaser 6500 Service Manual

2-14 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Theory of Operation
Media Path
Media Path Drive

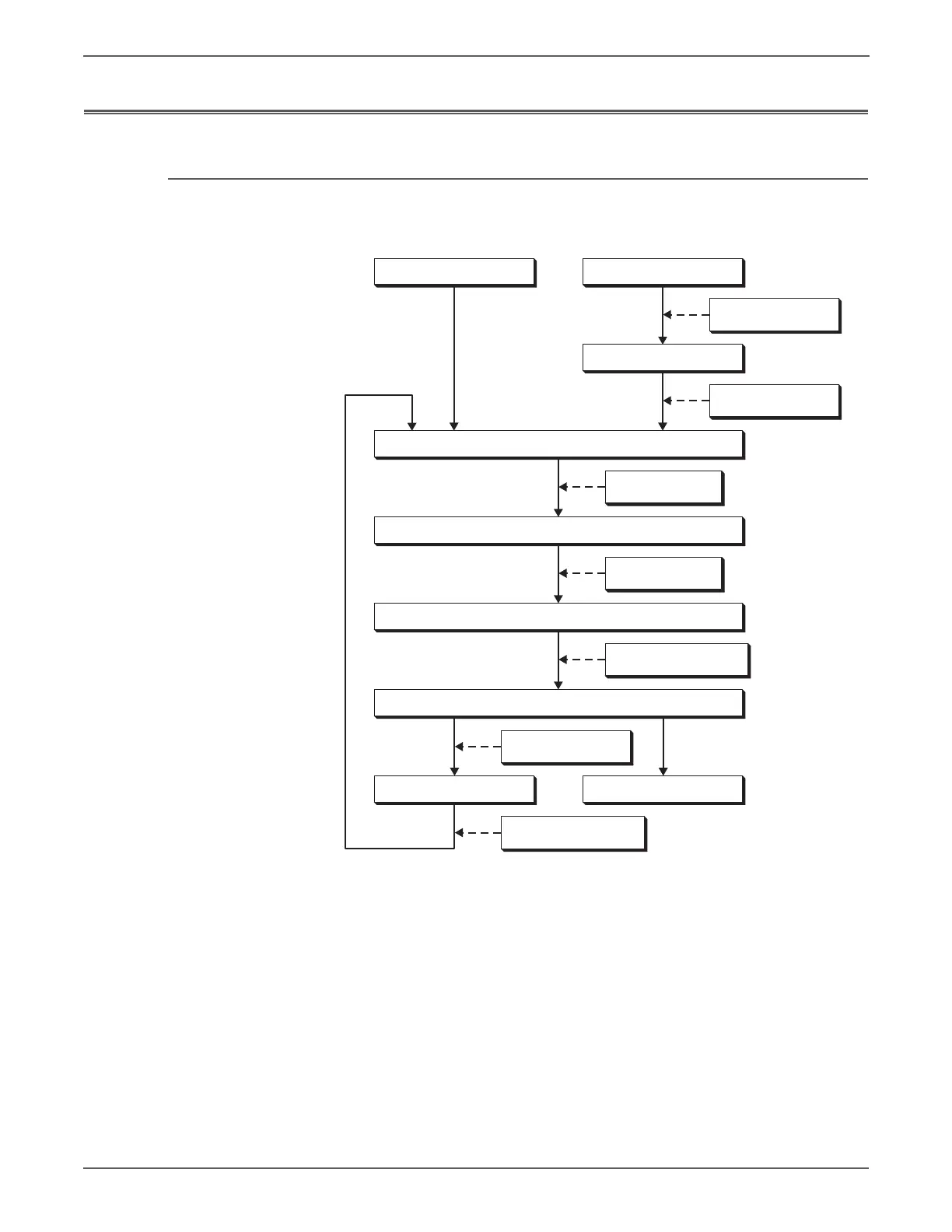

Media is supplied from the Tray or the Manual Feed slot, and is transported into
the printer along the paper path as shown in the diagram.
s6500-032
Manual Feed
Tray 2
Drive Motor / Solenoid /
Feed Roller
Drive Motor / Solenoid /
Feed Roller
Drive Motor / Clutch /
Registration Roller
Drive Motor / Clutch /
Exit Roller
Drive Motor / Heat Roller /
Pressure Belt
Exit Roller in the Fuser
Output Tray
Duplex Unit
Drive Motor / Duplex Roller
Drive Motor / Belt
Fuser
Transfer Belt
Registration Assembly
Tray 1
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
