8-116 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
Gear P2
PL 7.1.3 (Gear P2)
1. Perform the service preparation steps on page 8-3.
2. Open the Front Cover.
3. Remove the Left Side Cover (page 8-18).
4. Remove the Drive Clutch and Bearing Kit (page 8-48).
5. Remove, but do not disconnect the Feed Drive Assembly (page 8-117).

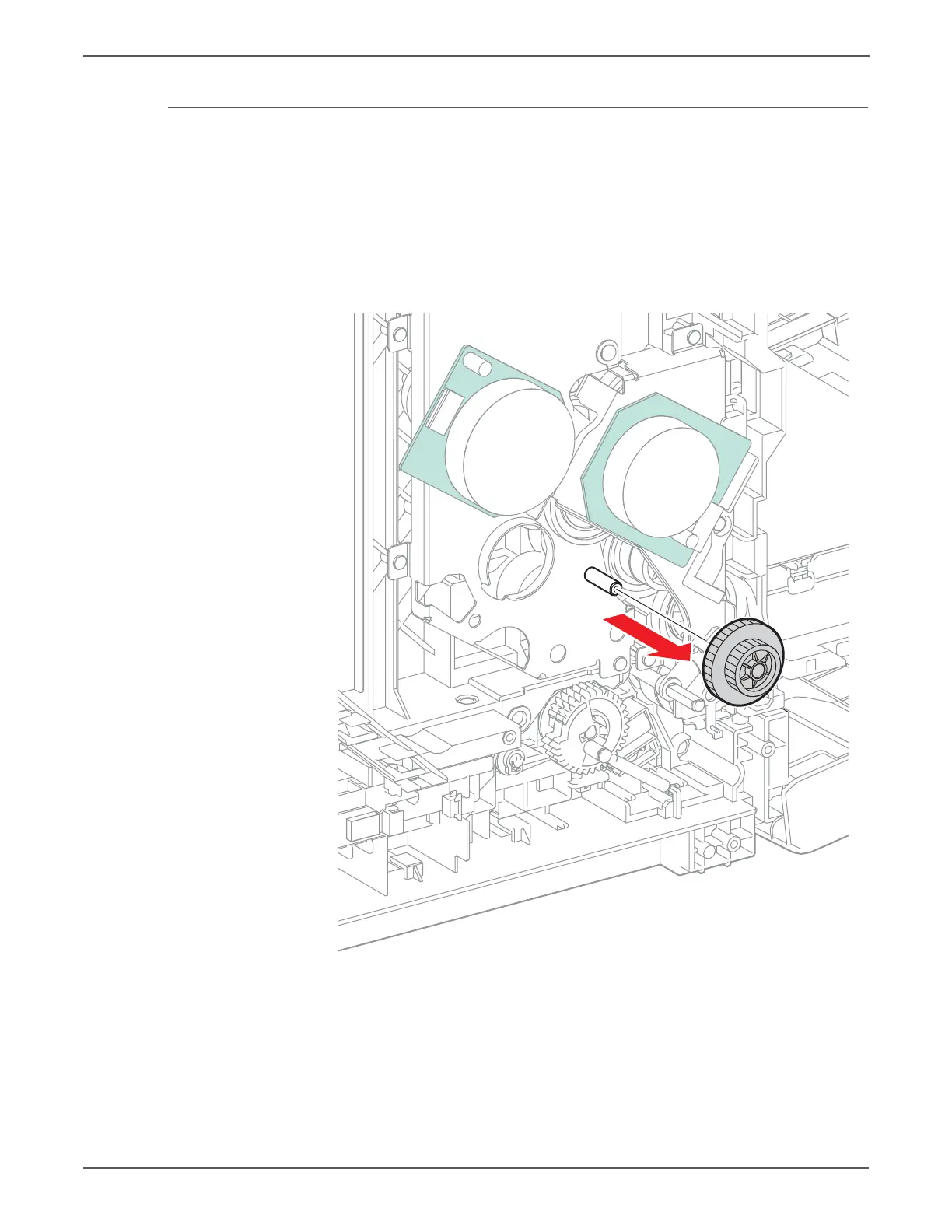

6. Remove Gear P2 from the shaft of the Sub-Drive Assembly.
