Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-117
Service Parts Disassembly
Feed Drive Assembly
PL7.1.4 (Drive Assy PH)
1. Open the Front Cover.
2. Remove the Left Side Cover (page 8-18).
3. Remove the Drive Clutch and Bearing Kit (page 8-48).

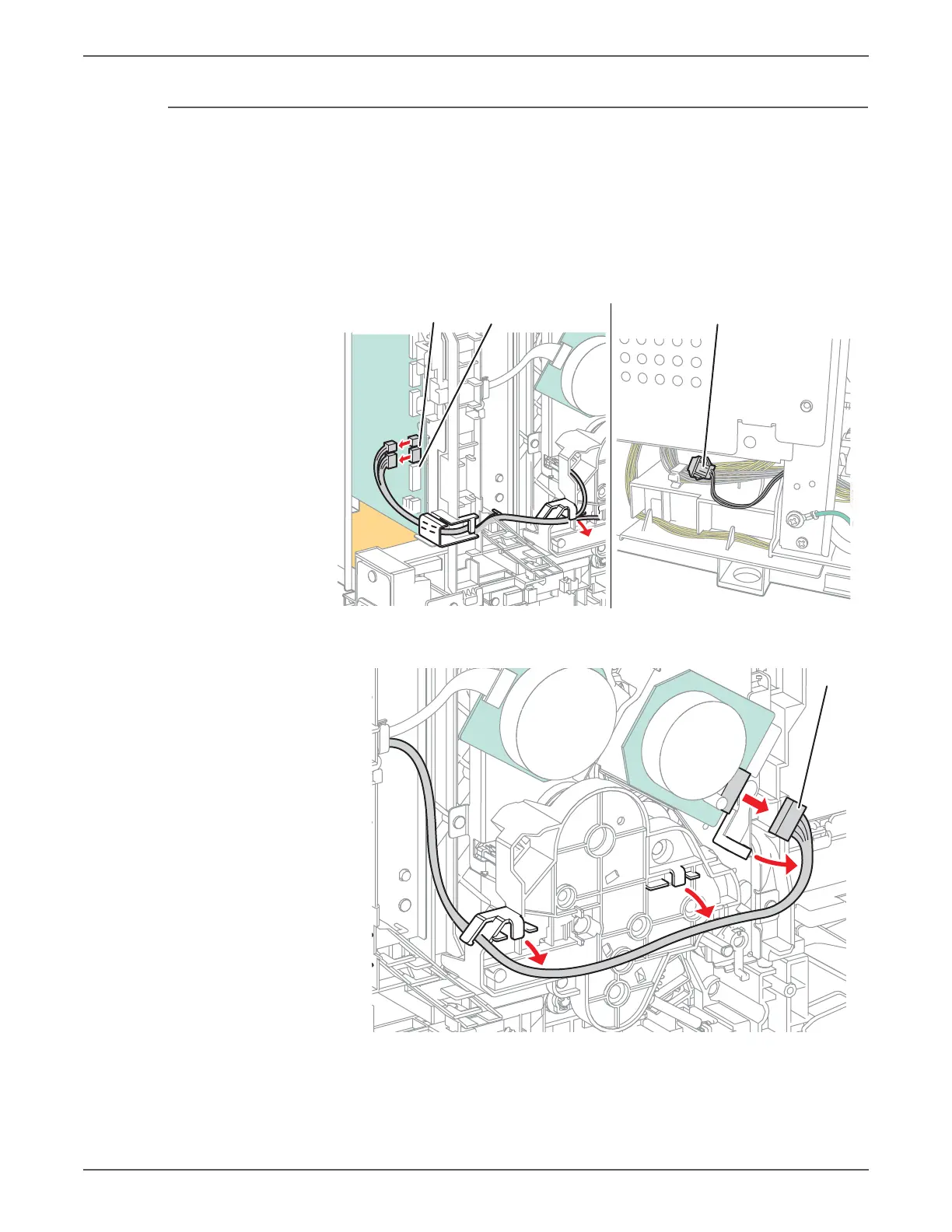

4. SFP Only: Disconnect P/J24 and P/J26 from the MCU Board and release the
harnesses from the AC harness guide.
5. MFP Only: Unplug P/J241 of the Feed Drive Assembly.
6. Disconnect P/J211 of the Main Drive Assembly and release all the harnesses
from the hooks on the Feed Drive Assembly.
Note
Make sure the coupling gear remains on the shaft of the Feed Drive
Assembly.
P/J24
P/J26
P/J241
s6500-300
s6500-299
P/J211
