Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 3-145
Error Messages and Codes
IOT CTD (ADC) Sensor Error
Applicable Error Code
• 092-310
Troubleshooting Reference Table
Applicable Parts Wiring and Plug/Jack Map References
■ Imaging Unit (PL4.1.21)
■ Dispenser Assy (PL5.1.1)
■ Motor Frame Assy (PL5.1.2)
■ Dispenser Motor Assy (PL5.1.3)
■ Toner Cartridge (Y) (PL5.1.24)
■ Toner Cartridge (M) (PL5.1.23)
■ Toner Cartridge (C) (PL5.1.22)
■ Toner Cartridge (K) (PL5.1.21)
■ Toner Motor Harness Assy
(PL5.1.25)
■ Transfer Belt (PL6.1.7)
■ MCU Board (SFP PL8.2.13; MFP
PL8.3.6)
■ “Map 4 - SFP MCU Board” on
page 10-9
■ “Map 9 - MFP MCU Board and HVPS”
on page 10-18
■ “SFP Xerographics” on page 10-30
■ “SFP Toner Dispenser” on page 10-32
■ “MFP Xerographics” on page 10-43
■ “MFP Toner Dispenser” on page 10-45
Troubleshooting Procedure
Step Actions and Questions Yes No
1 Is the shipping protection sheet still on
the Imaging Unit?
Remove the
protection
sheet.
Go to step 2.
2 Open the Front Cover and check the
ADC Sensor Window.
Is the ADC Sensor window dirty?
Go to step 3. Go to step 4.

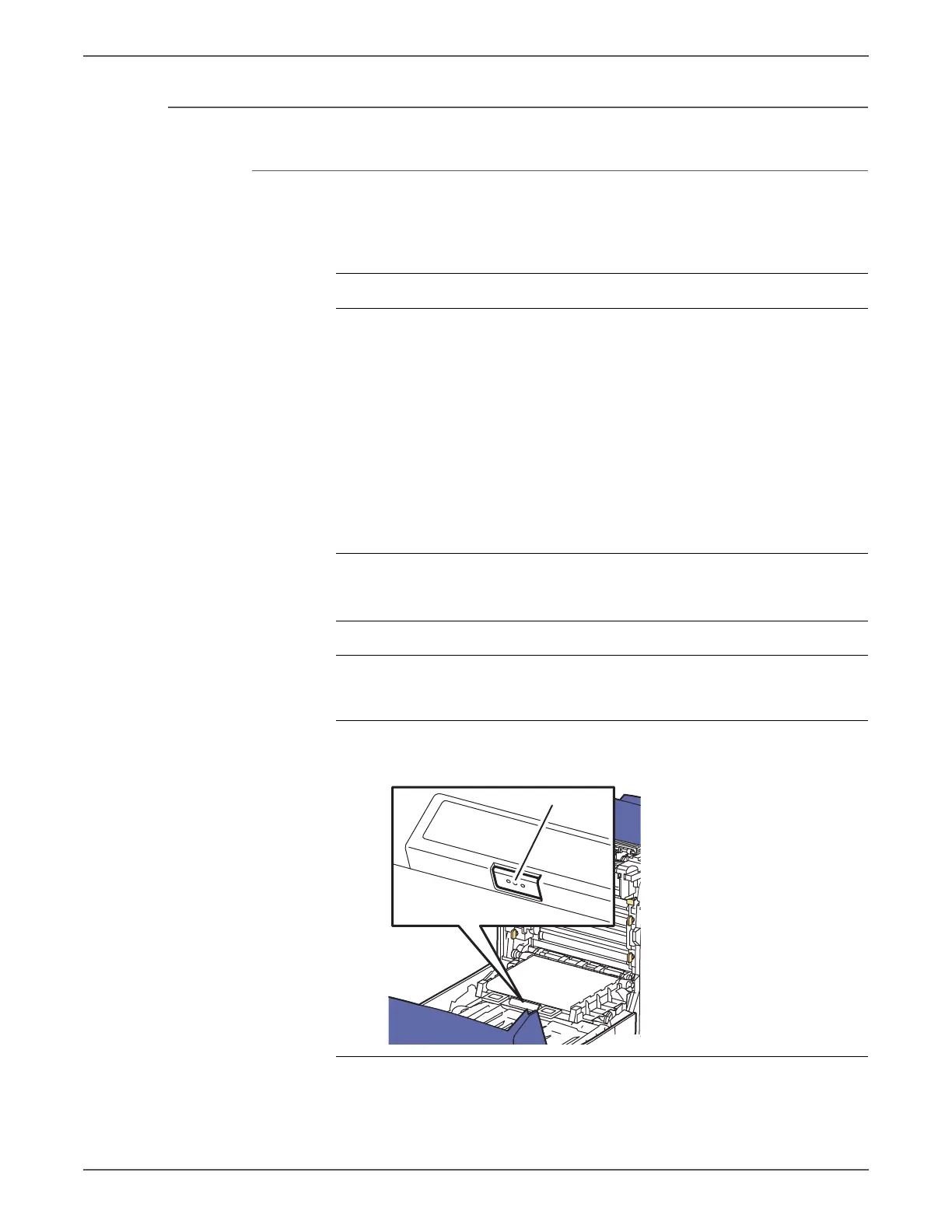

s6500-500
ADC Sensor window
