8-58 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

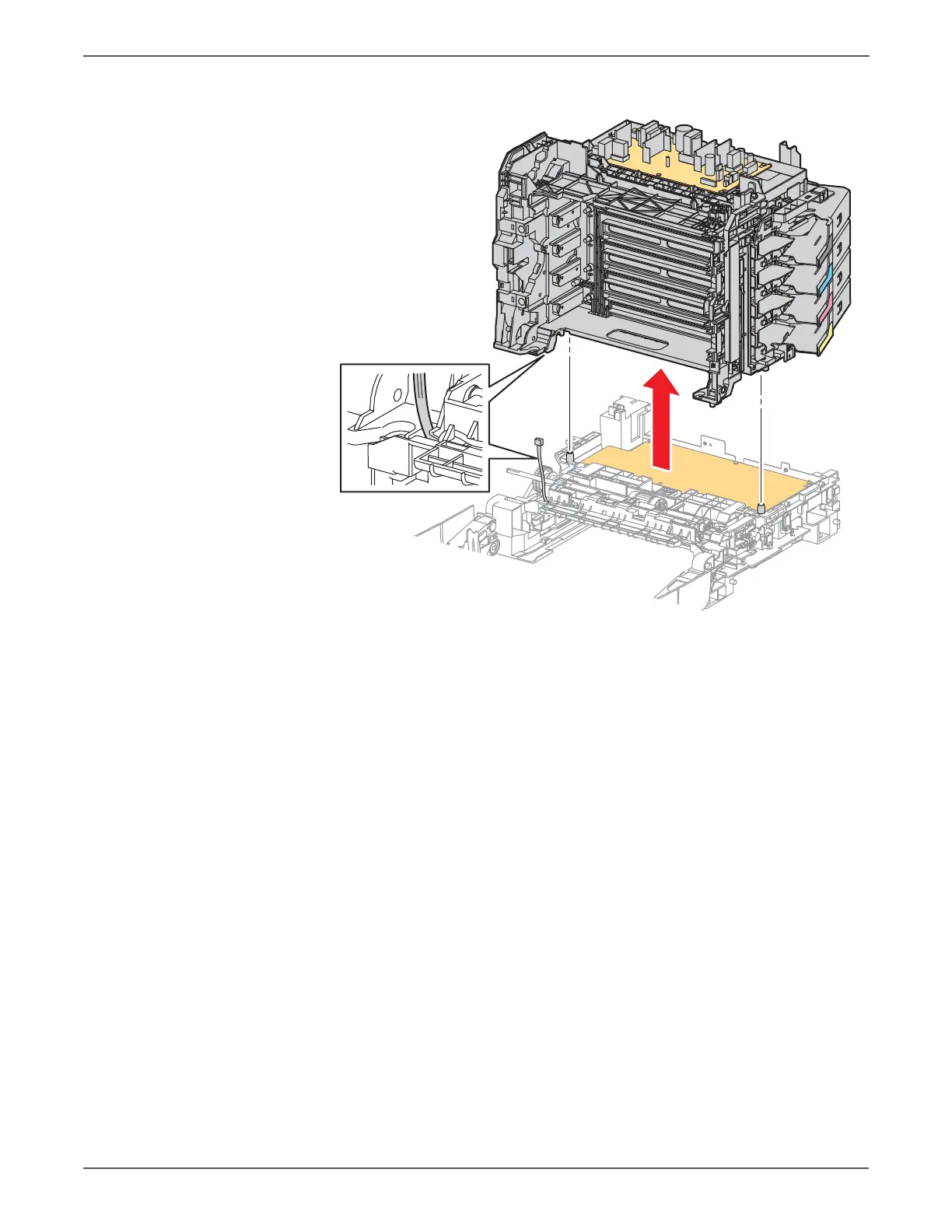

27. Lift the upper frame from the chassis.
Replacement Note
Removal of the Laser Unit from the upper frame simplifies the task of lacing
the harnesses around the Dispense Assembly. Route the Transfer Belt harness
through the groove in the upper frame.
s6500-238
