Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-21
General Troubleshooting
Note
Press Cancel to stop the test.

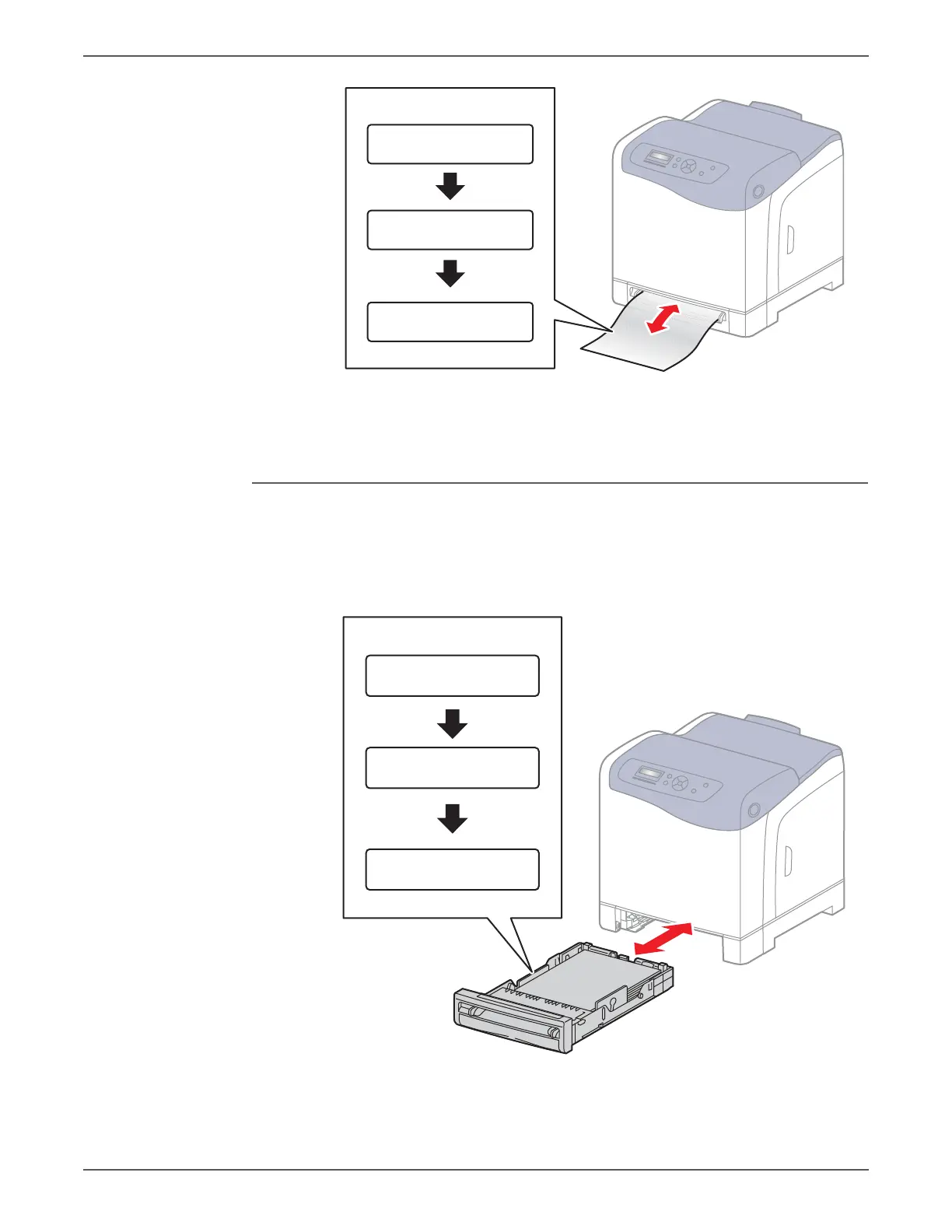

Tray 1 No Paper Sensor
1. Enter Service Diagnostics (page 4-8).
2. Run the Tray No Paper test: Engine Diag > Sensor Test > Tray No Paper.
3. Remove Tray.
4. Move the Actuator up and down while checking the Control Panel display.
Note
Press Cancel to stop the test.
s6500-106
Control Panel
Normal
Manual Feed Sensor
L - 00
Manual Feed Sensor
H - 00
Manual Feed Sensor
L - 01
s6500-107
Control Panel
Normal
Tray No Paper
L - 00
Tray No Paper
H - 00
Tray No Paper
L - 01

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
