Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-87
Service Parts Disassembly

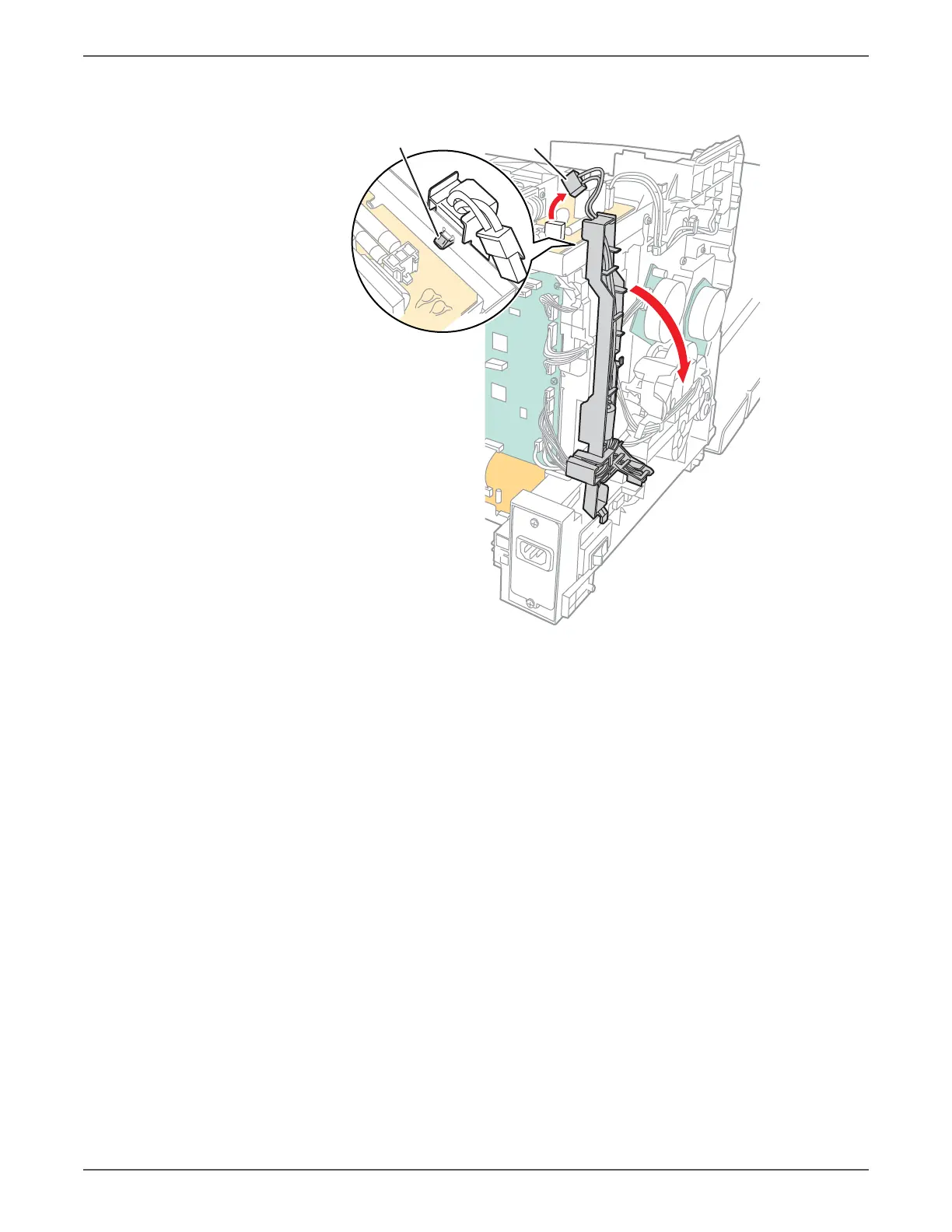

13. Disconnect the Power Switch Harness from the LVPS (P/J48), then release the
hook that secures the AC harness guide to the chassis.
s6500-267
P/J48
Hook
