Xerox Phaser 6500 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-29
General Troubleshooting
Main Drive Assembly
The Main Drive Assembly drives the Transfer Belt and Imaging Unit drums.
Note
Close (cheat) the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 1.
3. Open the Front Cover.
4. Lower the Transfer Belt.
5. Run the Main Motor test: Engine Diag > Motor Test > Main Motor Full2,
Full1, Half.

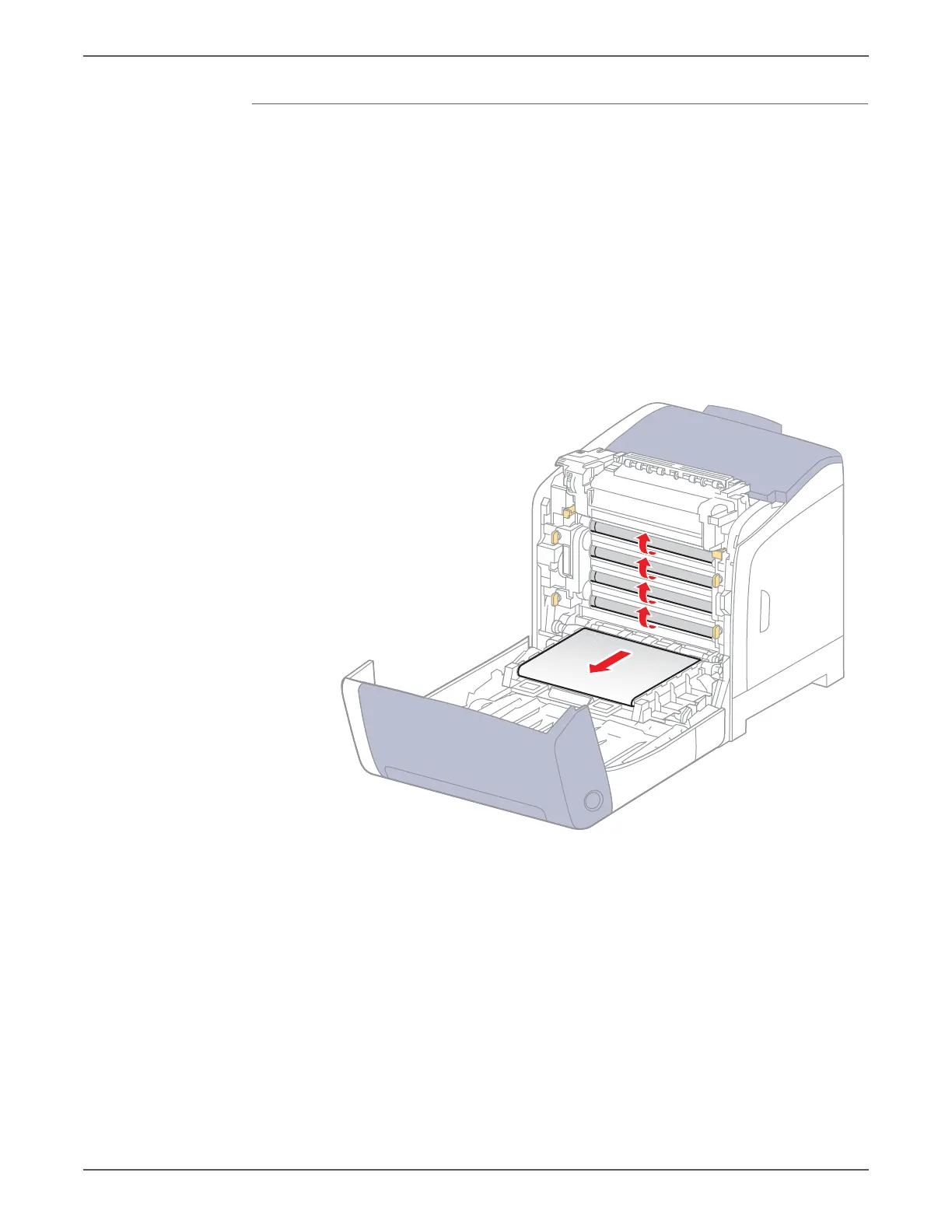

6. Verify that the Imaging Unit drums are rotating, and Transfer Belt is moving.
Note
Press Cancel to stop the test.
s6500-119

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
