Xerox Phaser 6500 Service Manual

4-30 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Sub Drive Assembly
The Sub Motor is located in the Main Drive and drives the Fuser and Developer.
Note
Close (cheat) the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Run the Sub Motor test: Engine Diag > Motor Test > Sub Motor Full2, Full1,
Half.

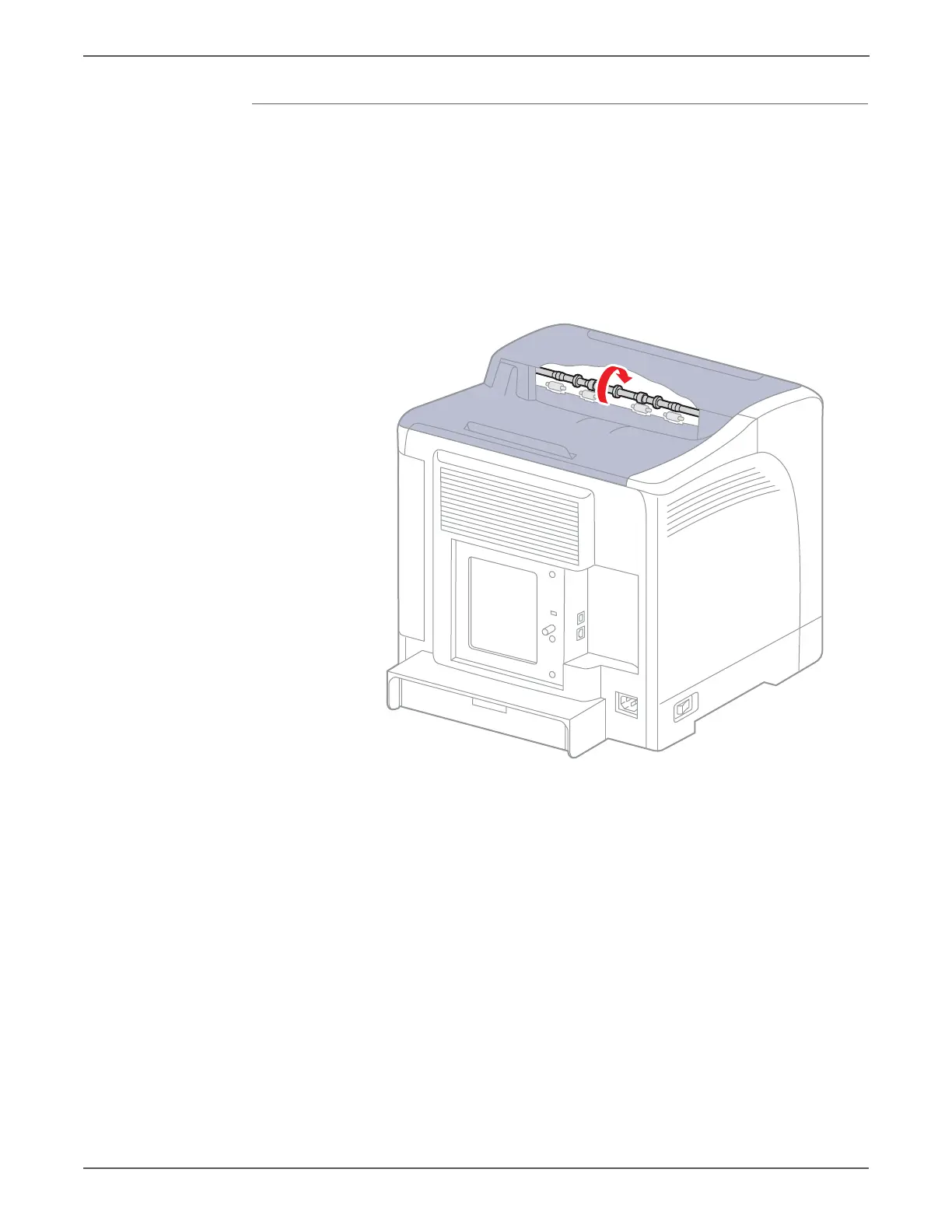

3. Verify that the Exit Roller is rotating.
Note
Press Cancel to stop the test.
s6500-120
http://www.manuals4you.com

Xerox Phaser 6500 Specifications

General

Monthly Duty Cycle	Up to 40, 000 pages
Duplex Printing	Manual
Print Technology	Laser
Maximum Print Resolution	600 x 600 x 4 dpi
First Page Out Time	As fast as 12 seconds
Connectivity	USB 2.0, Ethernet
Paper Capacity	250 sheets + 1 sheet bypass tray
Supported Operating Systems	Windows, Mac OS, Linux
Print Speed	Up to 24 ppm (color) / Up to 24 ppm (black)
