8-24 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual

Service Parts Disassembly

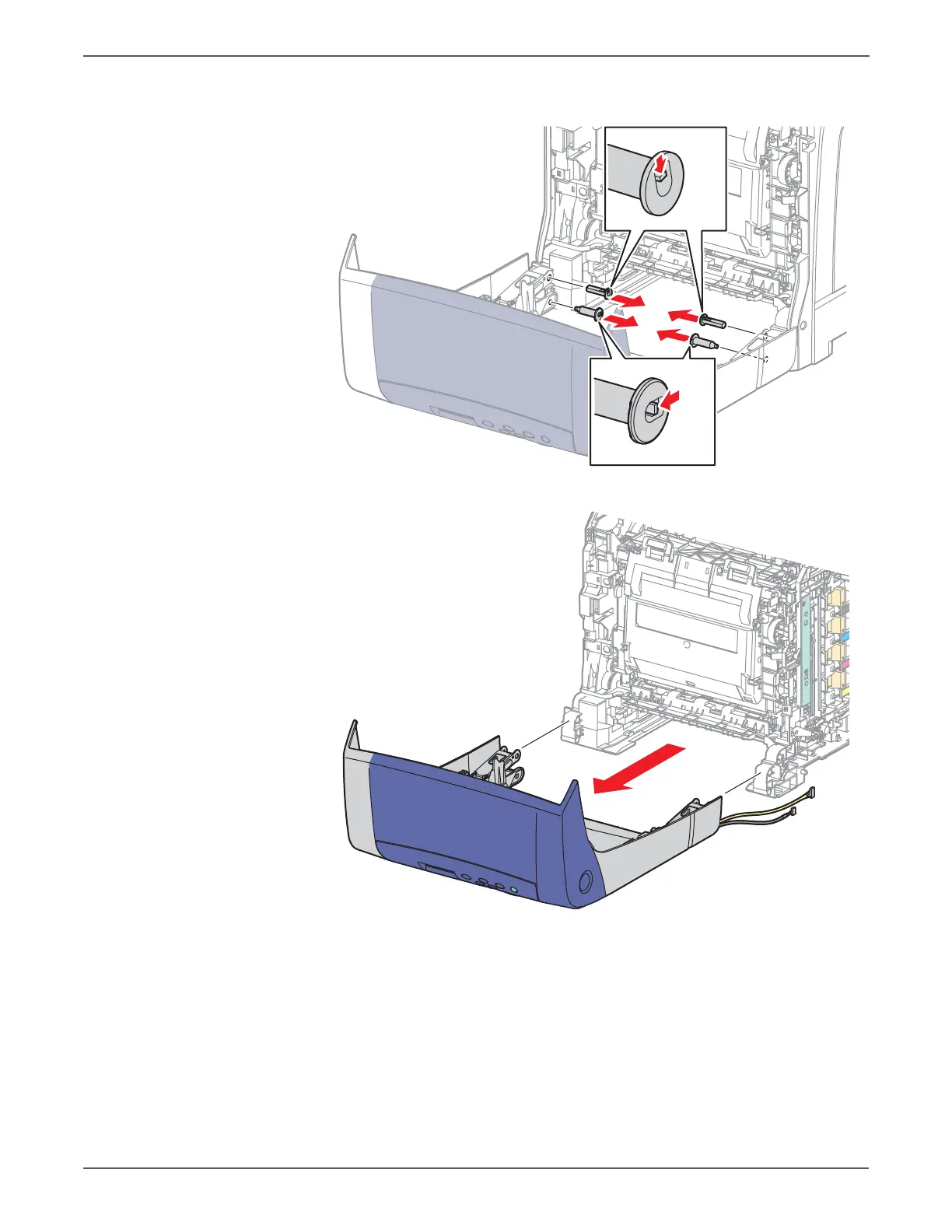

13. Release the 4 pivot shaft hooks and Remove two pivot shafts from the Front

Cover links and 2 pivot shafts from the Front Cover.

14. Pull the Front Cover forward to remove.

s6500-195

s6500-196
