Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-111
Service Parts Disassembly

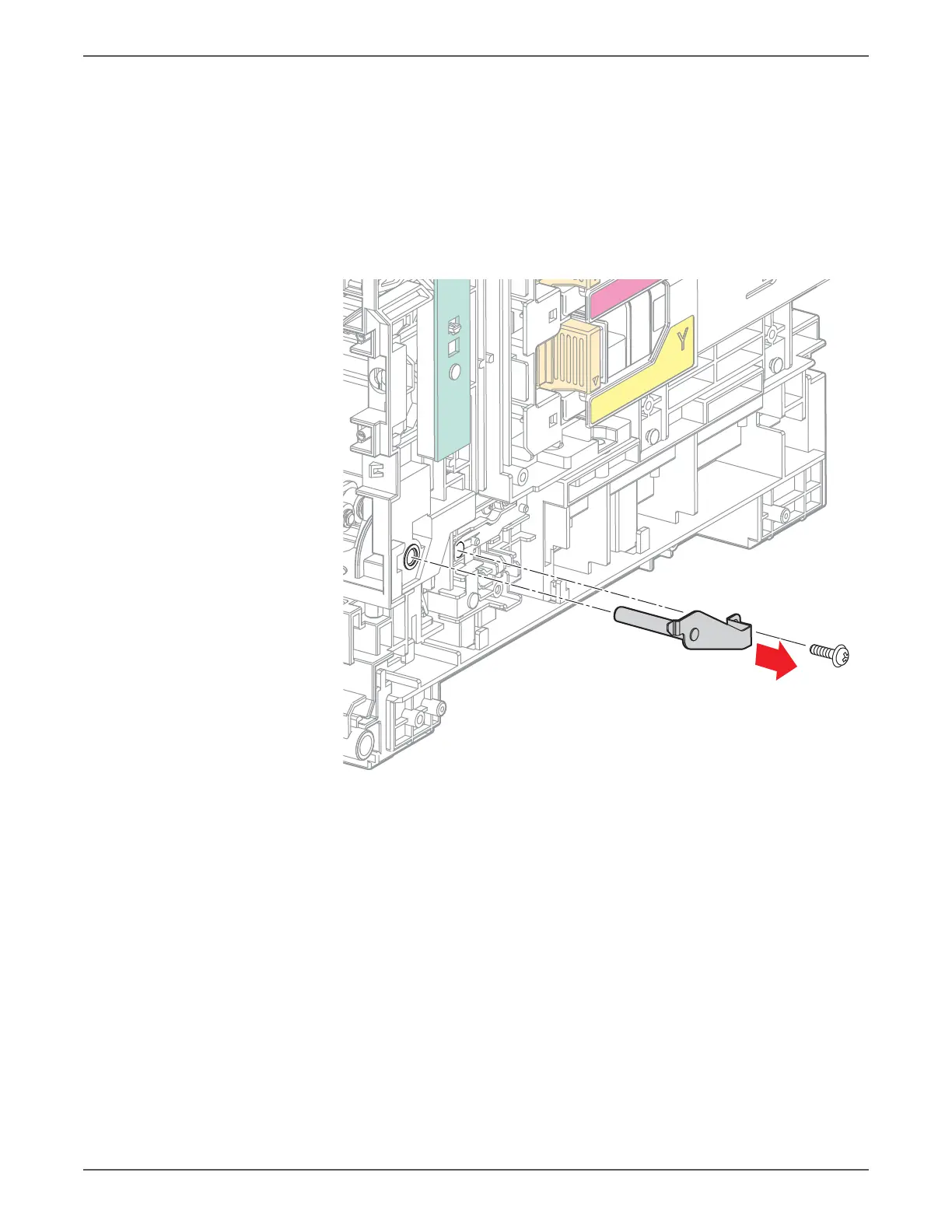

8. Remove the screw (silver, tap, 8mm) that attaches the Right Side Pivot Shaft
to the printer.
Note
When performing the next step, keep the Transfer Belt slightly lifted to
ease Pivot Shaft removal. If you are performing this procedure as part of
the Transfer Belt removal, the only step remaining after removing the
Right Pivot Shaft is to lift the Transfer Belt out of the printer.
9. Pull the Pivot Shaft out of the printer.
Replacement Note
Use care when reinserting the pivot shaft to avoid damaging the grounding
contact in the Transfer Belt pivot.
s6500-293
